- Place of Origin:CN;GUA
- Model Number:T-8S02
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:8 (7.1)
- Input Sensitivity/Impedance:0.25mV/5KΩ balanced, ±7.75V/5KΩ balanced
- Output Level/Impedance:+4 dBμ/440Ω balanced (MAX:±7.75V)
- Low Cut:18 dB/octave at 100 Hz
- Frequency Response:20Hz to 20KHz
- S/N Ratio:More than 60dB
- T.H.D.:Less than 0.05%
- Threshold Adj Range:-20 dB to +20 dB
- Ratio Adj. Range:0 to 100%
- Power Consumption:20W
- Power Supply:AC 110V/60Hz or AC 230V/50Hz

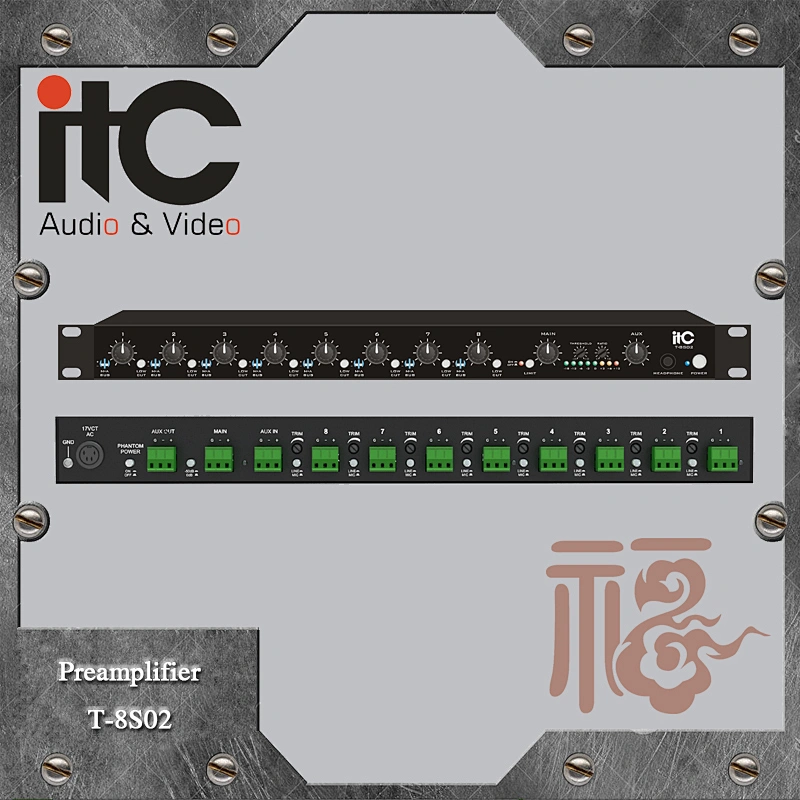

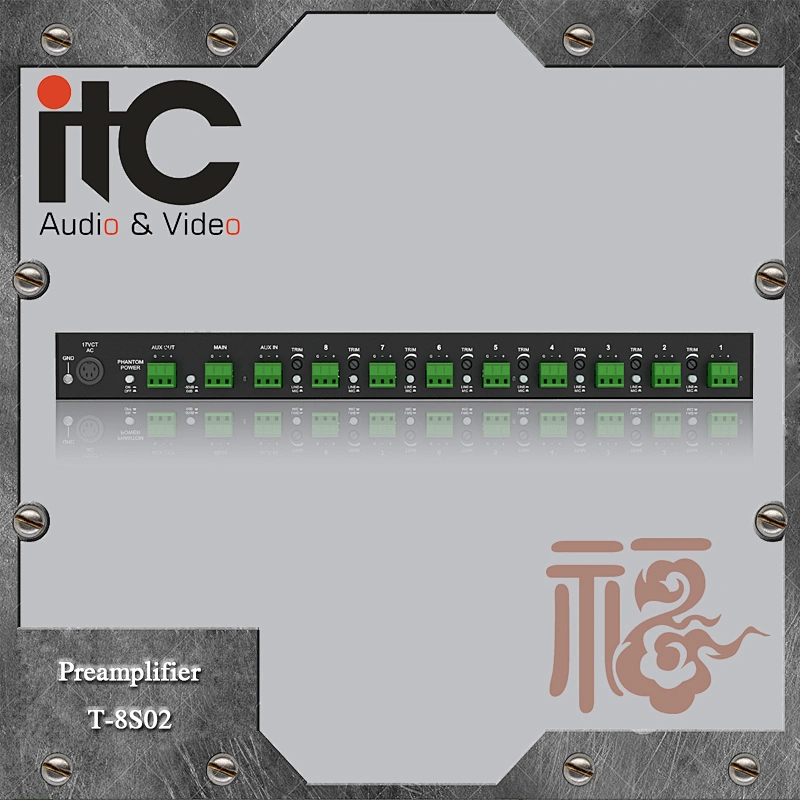

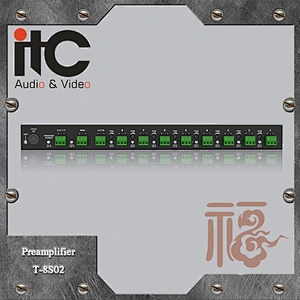

ITC T-8S02 8 Switchable Mic/Line Input Phono Preamplifier Audio
ITC T-8S02 8 Switchable Mic/Line Input Phono Preamplifier Audio
ITC T-8S02 8 Switchable Mic/Line Input Phono Preamplifier Audio
ITC T-8S02 8 Switchable Mic/Line Input Phono Preamplifier Audio
* In standard 1U rack mount design; the black panel is in the material of alumina;
* With 8 Mic/Line switchable input which is independent; using European terminal;
* Dual bus design with switcher for main channel and AUX channel;
* With 1 independent AUX input; using European style terminal.
* Multi-channel input audio mixed into public output bus directly, adopting balanced input and output;
* Each input is with gain control and low cut filter;
* With phantom power to supply condenser microphone;
* Each input has independent knob to adjust PWL;
* Main output is equipped with compressor which has by-pass switcher; the threshold value and ratio value of it could be adjusted;
* With LED indicator to show output state;
* With earphone output.
ITC T-8S02 8 Switchable Mic/Line Input Phono Preamplifier Audio
