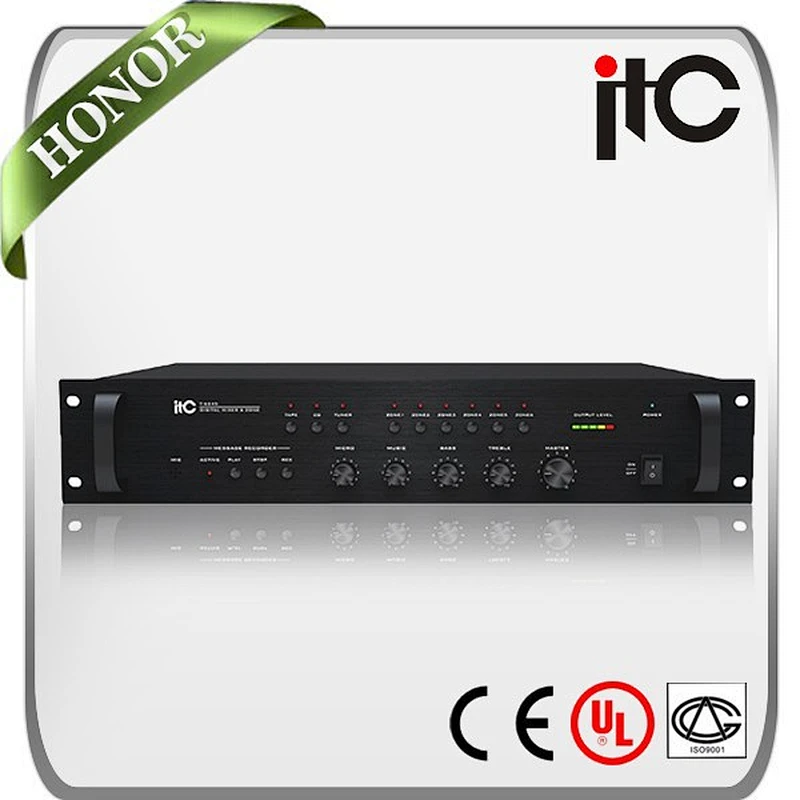

ITC T-6245 Multiply Selectable Audio Sources Wire PA System Price

Quantity:

ITC T-6245 Multiply Selectable Audio Sources Wire PA System Price

Appearance

Feature

ITC T-6245 Multiply Selectable Audio Sources Wire PA System Price

* It’s 6 zone PA system host for audio source selection and zoning control.

* Build in mic and recorder for easily voice message recording and storage.

* On the front panel, it’s with 3 buttons for audio source selection and with 6 buttons for zone selection.

* 6 zone paging console works together with the host to do remote control and announcement via RJ45.

* Mic input in type of XLR is with phantom power and gain control.

* With 3 AUX input for tape, CD and radio tuner.

* It’s with chime.

* It could be pre-recorded 3 segment of voice message and there’re 2 modes of broadcasting: continuous and once.

* With 3 front output: music, music/page and page

* 6 line output need to be connected to power amplifier.

* Total volume control and treble/bass control is provided.

* Indication to display zone selector, source selector, record state, power and output level.

* 4 levels of priority from high to low: remote paging console, Mic1, chime, pre-recorded message broadcasting.

Specification

ITC T-6245 Multiply Selectable Audio Sources Wire PA System Price

Model	T-6245
CONSOLE INPUT
Sensitivity	±5 mV/600 ohm , ±500mV/10Kohm
S/N Ratio	>68dB
Frequency Response	50Hz~17KHz(+1, -3dB)
MIRCOPHONE INPUT
Sensitivity	±5 mV/600ohm , ±500mV/10Kohm
S/N Ratio	>68dB
Frequency Response	50Hz~17KHz(-3dB)
Phantom Power	+48V
3 AUX INPUT
Tuner and Tape Input Sensitivity/Impedance	200mV/47 ohm
CD Input Sensitivity/Impedance	500mV/47 ohm
S/N Ratio	>90dB
Frequency Response	20Hz~20KHz(+1, -3dB)
CONTROL
Bass	±12dB at 100Hz
Treble	±12dB at 10KHz
Chime	2 tone
Normal Distortion	>0.05%
OPERATING CONDITION
Power Supply	~110V/60Hz or ~230V/50Hz & DC 24V
Dimension	484x303x88mm
Weight	6.32Kg
Max. number of paging console	6
