- Place of Origin:CN;GUA
- Model Number:T-260AP
- Brand Name:ITC
- Certificate:CCC CE
- Rated Power Output:2x60W (THD10% @ 4Ω1KHz)
- Speaker Output:4 ohm or 8 ohm
- Input Type:2 AUX input of RCA and 2 MIC/Line input of phoenix
- Sensitivity & Impedance of Line Input:350mV/10KΩ
- Sensitivity & Impedance of MIC Input:5mV/600Ω
- S/N Ratio(Line):Higher than 85dB
- THD:Less than 0.5% at 1KHz, 1/3 rated power
- Efficiency:85%
- Power Supply:~110V/60Hz or ~230V/50Hz

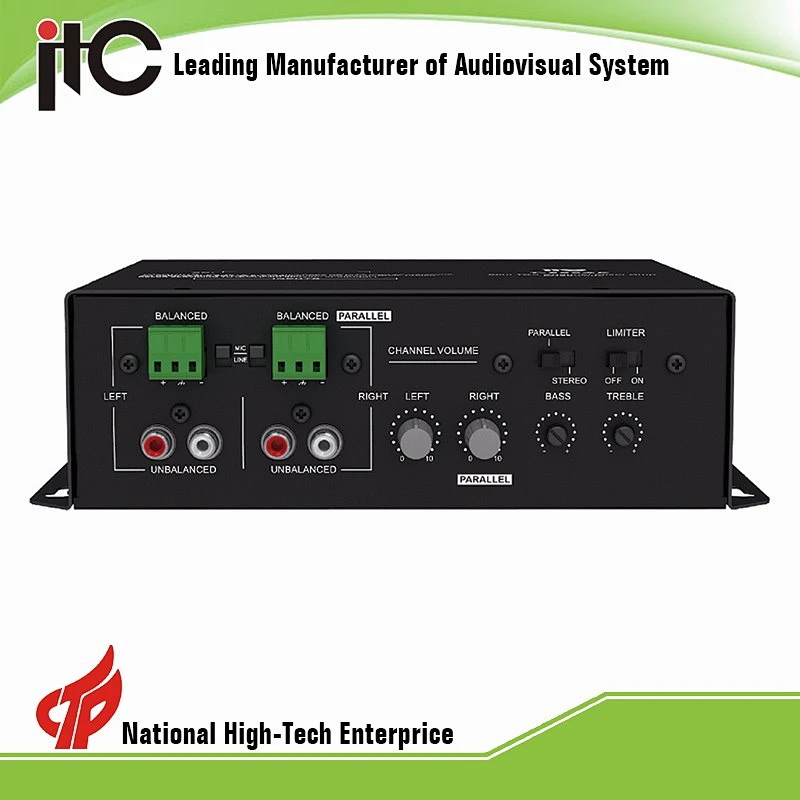

T-260AP Best Seller 2 Channel 60W Stereo Mini Audio Power Amplifier
Model | T-260AP |
Rated Power Output | 2x60W (THD10% @ 4Ω1KHz) |
Speaker Output | 4Ω or 8Ω |
Input Type | 2 AUX input of RCA and 2 MIC/Line input of phoenix |
Sensitivity & Impedance of Line Input | 350mV/10KΩ |
Sensitivity & Impedance of MIC Input | 5mV/600Ω |
Frequency Response | 50Hz~18KHz (±2dB) |
S/N Ratio(Line) | Higher than 85dB |
THD | Less than 0.5% at 1KHz, 1/3 rated power |
Efficiency | 85% |
Control | Power switch, volume control |
Indicator | Power |
Protection | AC fuse, overload, overheat & short |
Power Supply | ~110V/60Hz or ~230V/50Hz |
Dimension | 230x115x56.5mm |
Finish | Panel: stainless steel, black Case: stainless steel, black |
* It’s designed in desktop or wall mount.
* High efficiency class D mini amplifier.
* 2 stereo output in 60W and parallel connection output in 120W.
* With 2 switchable Mic/line input and 2 unbalanced AUX input.
* Left and right master volume controls over Mic and music , bass and treble tone controls.
* Output is in type of phoenix; With switcher to choose parallel or stereo output.
* 2 stereo output at impedance of 4 ohm or 8 ohm and parallel connection output at 8 ohm.
* Built in limiter for noise, and it’s with switcher of on/off, which make it suitable for laptop and iphone input.

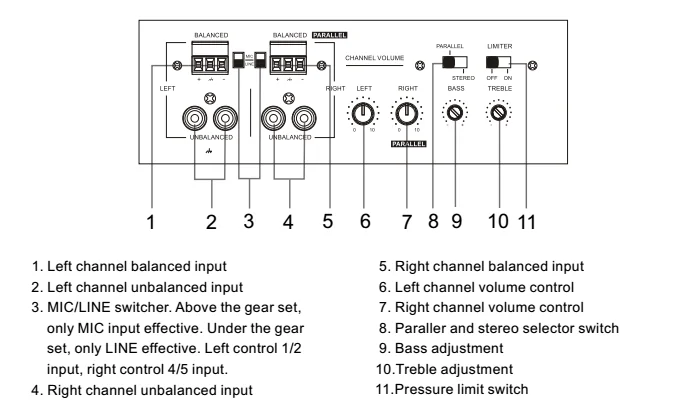

Font Panel

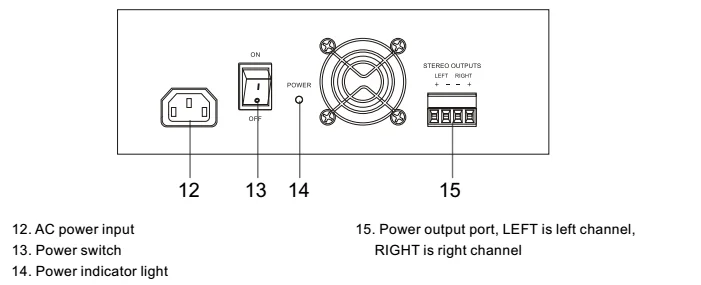

Rear Panel

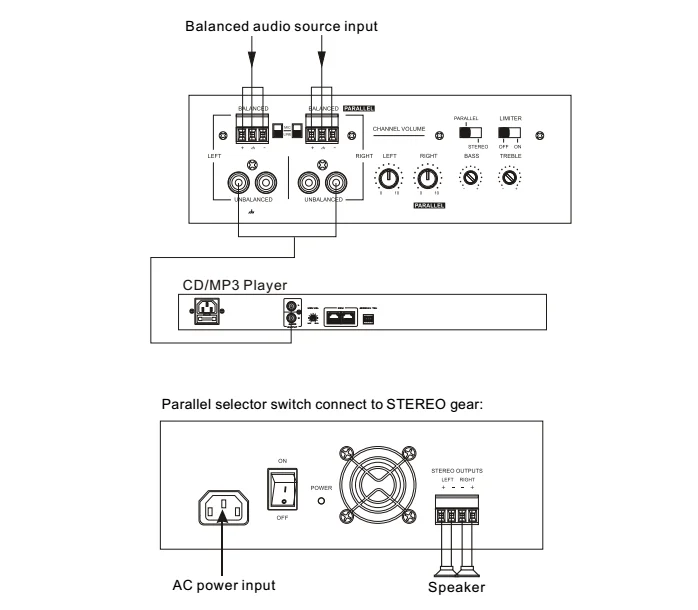

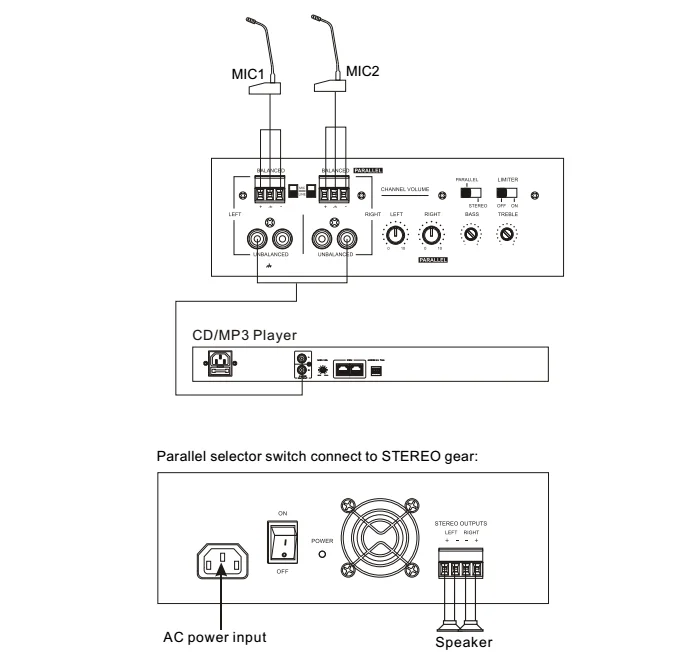

Applications
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
