- Place of Origin:CN;GUA
- Model Number:T-4120RS/T-4240RS/T-4350RS
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:4
- Power Output:120W/240W/350W
- Speaker Output:4-8 ohm/100V
- Sensitivity:385mV
- Impedance:20KΩ
- Frequency Response:80Hz~18KHz (+1dB, -3 dB)
- SNR:≥85dB
- THD:≤0.5%
- Display:LCD
- Power Consumption:600W/1200W/1750W
- Power Supply:AC 110V or 230V

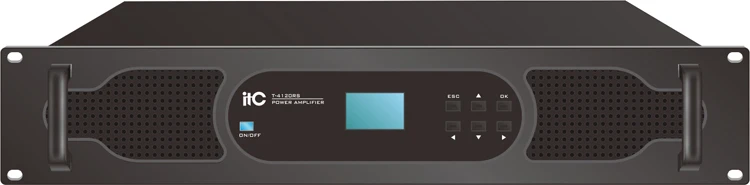

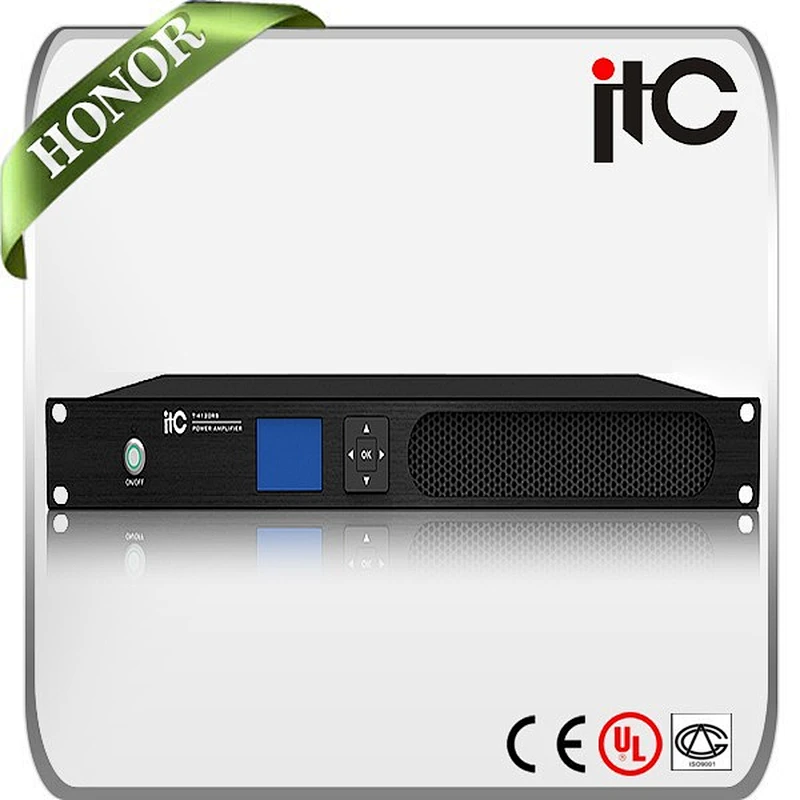

ITC T-4120RS Series Balanced Line Input 4 Channel Power Mixer Amplifier with RS232
Features
* 4 channels of balanced line input, power output: 4 x 120W / 4 x 240W / 4 x 350W.
* 4 channel independent volume control, bass and treble adjustment function.
* 4 channel single display, including signal, peak, protection and power.
* The electrical input is isolation, output is not isolation, amplifier with function of automatic detection and automatic identification 4-16R / 100V high-low impedance output state.
* Connect with RS232 interface and remote control switch, remote monitoring the status of the power amplifier. can achieve volume and tone control of 4-channel amplifier, fault output feedback and trigger functions.
* Support for 230V and DC 24V power supply, soft boot mode.
* Protection 21.6 ~ 26.5 vdc, avoid long-term supply of high-voltage battery failure or damage to the equipment.
* Speaker output: 4-8Ω / 100V.
* Built-in overvoltage, undervoltage, high temperature, overload and short circuit protection.
ITC T-4120RS Series Balanced Line Input 4 Channel Power Mixer Amplifier with RS232
Model | T-4120RS | T-4240RS | T-4350RS |
Rated Power Output | 4 x120W | 4x240W | 4 x350W |
Speaker Output | 4-8Ω/100V | ||
Input Sensitivity & Impedance | ±385mV/20KΩ, balanced input | ||
Frequency Response | 80Hz~18KHz (+1dB, -3 dB) | ||
S/N Ratio | ≥85dB | ||
THD | ≤0.5% at 1KHz, 1/3 rated power | ||
Controls | Volume control and power switch control on the panel; Remote standby control and remote amplifier state reading (Phoenix connector on the rear panel), remote audio transmission (Rs232 connector on the rear panel) | ||
Display | LCD display | ||
Protection | High temp, loudspeaker DC output, overload and short-circuit | ||
Cooling | Forced cooling (≥50℃half speed control, ≥70℃ full speed control) | ||
Power Consumption | 600W | 1200W | 1750W |
Power Supply | ~110V/60Hz or ~230V/50Hz DC 24V (applied for 24V standby power supply) | ||
Dimensions | 484 x 350 x 44mm | ||
Weight | 8.5Kg | 8.8Kg | 9.5Kg |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
