- Place of Origin:CN;GUA
- Model Number:T-4120D/T-4240D/T-4350D/T-4500D
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:4
- Rated Power Output:4*120W/4*240W/4*350W/4*500W
- Speaker Output:100V
- Overload Electromotive Force:>11dB
- Frequency Response:80Hz~16KHz (+1, -3dB)
- S/N Ratio:>85dB
- THD:<0.1% at 1KHz, 1/3 rated power
- Indicators:Signal, peak, protection and power
- Protection:Overheat, overload & short
- Power Consumption:600W/1200W/1750W/2250W
- Power Supply:AC 190V~240V 50Hz and DC24V
T-4120D Series 120W 240W 350W 500W 1U Digital Power Amplifier 4 Channel
It’s class D power amplifier, which consist of 4 individual amplifiers. Optional rated power output include 120W, 240W, 350W and 500W. It’s designed in both tabletop and rack mount. Shinning feature is that it adopts tech. of power saving. And it’s with switching power so that the efficiency is up to 85%. Thermogenesis is less than 55 degree. It could operate stably at severe working condition. 4 balanced line input is in type of phoenix. 4 RJ45 port is for remote power control, volume control and working status monitor. Speaker output is at 100V with individual volume control. Indicators display signal, peak and protection status. Rational cooling system ensures the system to work under 55 degree. Complete protection is for overheat, overload and short.
* Class-D power amplifier.
* With switching power.
* Efficiency is up to 85%.
* Thermogenesis is less than 55 degree.
* In 1U.
* Optional rated power output includes 120W, 240W, 350W and 500W.
* 4 balanced line input is in type of phoenix.
* Speaker output is at 100V.
* With 4 RJ45 port for remote power control, volume control and status monitor.
* 4 speaker output is with individual volume control.
* Built in active band pass filter of 80Hz to 16KHz.
* With rational cooling system.
* With indicators displaying signal, peak and protection status.
* Complete protection for overheat, overload and short.
* Power supply is at AC 110V or 230V and DC 24V.
Model | T-4120D | T-4240D | T-4350D | T-4500D |
Rated Power Output | 4x120W | 4x240W | 4x350W | 4x500W |
Speaker Output | 100V | |||
Input Sensitivity/Impedance | ±385mV/20KΩ, balanced phoenix connector | |||
Overload Electromotive Force | >11dB | |||
Frequency Response | 80Hz~16KHz (+1, -3dB) | |||
S/N Ratio | ≥85dB | |||
THD | ≤0.1% at 1KHz, 1/3 rated power | |||
RJ45 | Remote power control, volume control and status monitor | |||
Indicators | Signal, peak, protection and power | |||
Protection | Overheat, overload & short | |||
Cooling | When Internal temp. reaches 55℃, the fan is turned on auto. | |||
Power Consumption | 600W | 1200W | 1750W | 2250W |
Power Supply | ~110V/60Hz or ~230V/50Hz | |||
Dimension | 484 x 395 x 44mm | |||
Weight | 9.04Kg | 9.02Kg | 9.06Kg | 10Kg |
Rear Panel

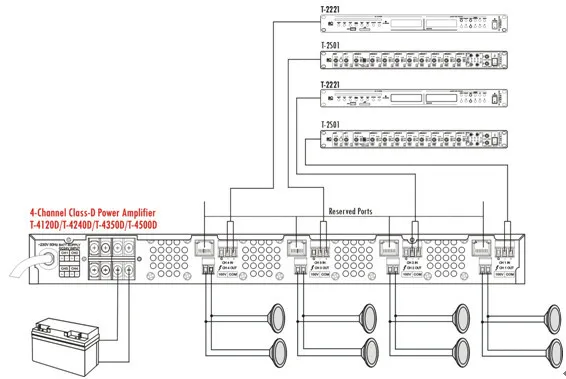

Connection
