- Place of Origin:CN;GUA
- Model Number:T-1240D/T-1350D/T-1500D
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:1
- Power Output:240W/350W/500W
- Speaker Outputs:100V
- Sensitivity:385mV
- Impedance:20K ohm
- Frequency Response:80Hz~16KHz
- SNR:≥85dB
- THD:≤0.5%
- Power Consumption:300W/420W/550W
- Power Supply:AC 110V or 230V
- Dimension:484 * 395 * 44mm

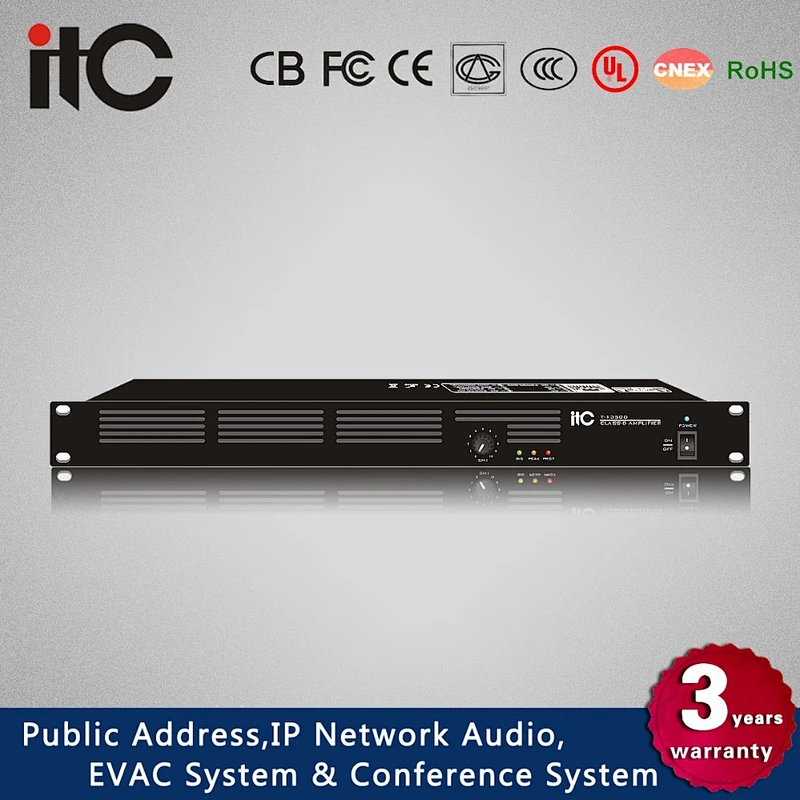

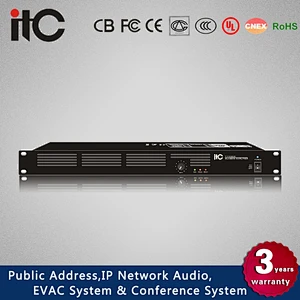

ITC T-1240D Series Latest Launch 240W/350W/500W Mono Audio Class D Amplifier
* Class D series digital power amplifier.
* Switch power supply.
* 85% high efficient amplifier.
* Low power consumption and less heat g eneration.
* Power amplifier in 1U height.
* RMS power output of 240W, 350W and 500W.
* Line input by phoenix connector.
* The speaker output of 100V without transformer.
* The RJ45 port for remote power control, volume control and status monitor.
* Remote power on/off could be done through the RJ45 port.
* Volume control is supplied.
* Built-in powered band pass filter for 80Hz to 16kHz signal.
* Excellent and efficient cooling system.
* The status indicator include signal, peak and protection.
* Extensive high temp, o verload and short-circuit protection.
* AC230V working voltage.
* The DC 24V input with wide voltage protection.
Model | T-1240D | T-1350D | T-1500D |
Rated Power Output | 240W | 350W | 500W |
Speaker Outputs | 100V | ||
Input Sensitivity & Impedance | ±385mV/20KΩ | ||
Overload Electromotive Force | >11dB | ||
Frequency Response | 80Hz~16KHz (+1dB, -3 dB) | ||
S/N Ratio | ≥85dB | ||
THD | ≤0.5% at 1KHz, 1/3 rated power | ||
Controls | Remote power control, volume control and status monitor | ||
Indicators | Signal, peak, protection and power | ||
Protection | High temp, overload & short-circuit | ||
Cooling | Fan automatically start up when temp reaches 55℃ | ||
Power Consumption | 300W | 420W | 550W |
Power Supply | ~110V/60Hz or ~230V/50Hz , DC24V | ||
Dimension | 484 x 395 x 44mm | ||
Weight | 5.5Kg | 5.34Kg | 5.42Kg |
More models and details, just send inquiry and contact us!
You will get professional suggestions no matter whether we can cooperate or not.
We are glad to offer advices for you.
Thanks for your time and clicking our products!
Quality?
Our products're applied to important event like Olympic Game Peking 2008, Asian Game Guangzhou 2010, etc.
Trustworthy?
We're not only popular supplier in China but has good reputation in the world.
In time?
We have the ability and we'll try our best to fulfill your demand.
Factory?
Welcome to NO.1 Building B Block Zhongcun Street Panyu Guangzhou China.
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our productare complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
Send Message

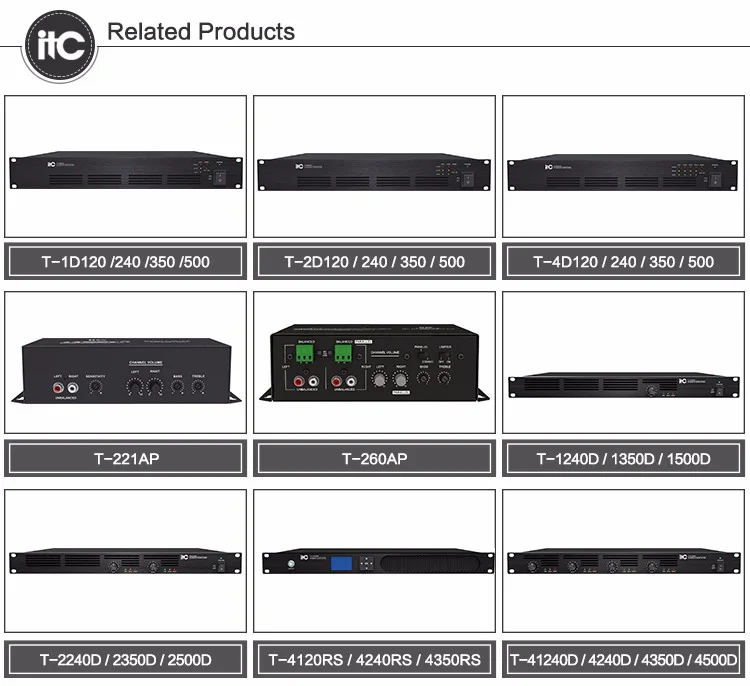

Related Products
