- Place of Origin:CN;GUA
- Model Number:T-4500D
- Brand Name:ITC
- Rated Power Output:4x500W
- Rated Voltage Output:100V
- Input Sensitivity/Impedance:±385mV/20K, Balance Input
- Overload Electromotive Force:>11dB
- Frequency Response:80Hz~16KHz (+1, -3dB)
- S/N Ratio:85dB
- THD:≤0.1% at 1KHz, 1/3 Rated Power
- Remote Control:Remote power control and fault indication
- Indicators:Signal, peak, protection and power supply
- Protection:High temperature, overload, short circuit

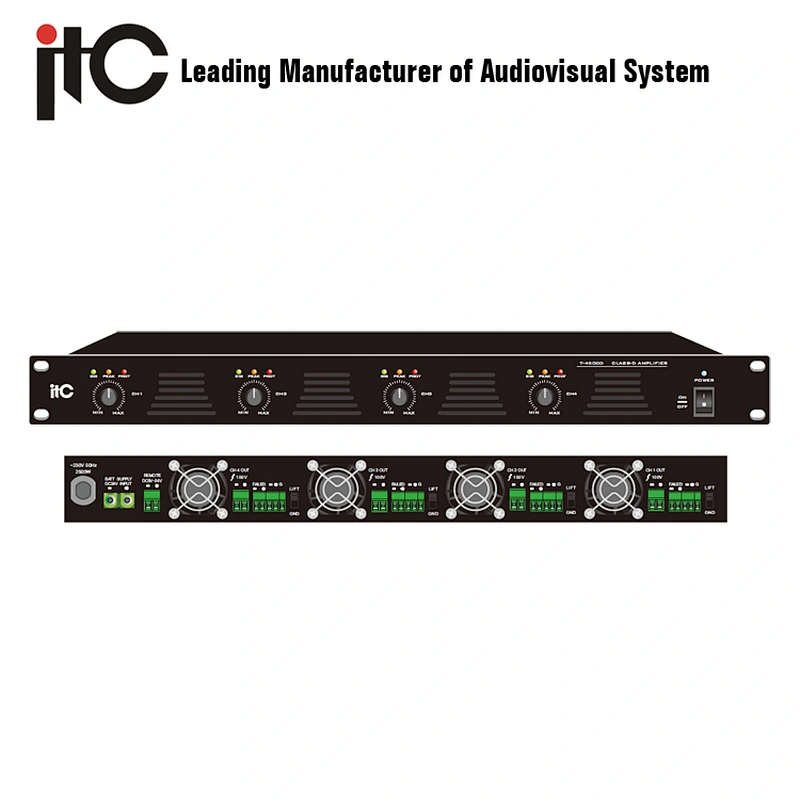

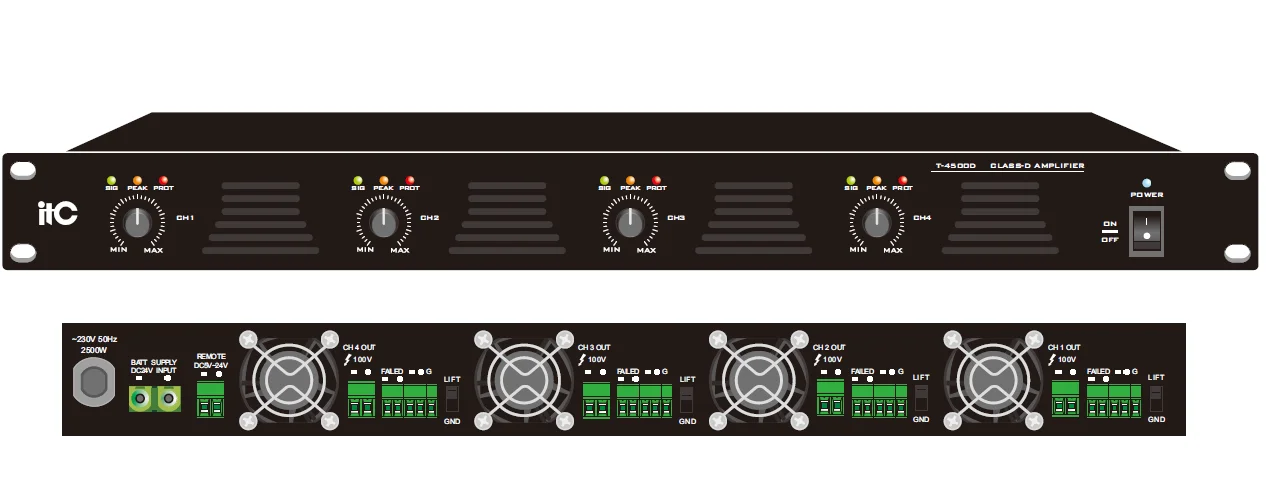

ITC T-4500D Wholesales OEM ODM 4 Channel 1U Digital Class D Amplifier
Using,high-efficiency class D amplifier circuit, built-in high efficiency switching power supply,
makingthe machine’s efficiency be up to 85% , the product within a reasonable cooling layout,
making the product even in extremely harsh working conditions can still maintain the
internal temperature below 55 degrees , Greatly extending the life of the equipment.
Products are used by 1U standard 19-inch industrial chassis design, providing four 100V
output terminal wiring speaker, providing a Phoenix interface for remote control, monitoring
equipment working condition, the product has a short circuit, overload, overheat protection.
* 4-channel Class-D digital amplifier, with independent four-channel,without transformer
,100Voutput.
* The rear panel with"ground"line suspension switch, effectively eliminate the loop noise
caused by multiple devices signal"ground"line connected.
* 85% high-efficiency amplifier, less power loss, small amount heat.
* 4-channel European-style terminal balanced input, 4-channel European-style terminal
output.
* Power-on function by remote control: Turn on the power of the machine remotely, and turn
off the power of the machine when both functions are turned off at the same time.
* Fault output function, remote monitoring amplifier’s working condition.
* 4 channel independent 24V standby power inverted function; amplifier with the function of
pressure limit, short circuit, overload, overheat protection.
* AC 110V or 230 V and DC 24V is optional.
Model | T-4500D |
Rated Power Output | 4x500W |
Speaker Output | 100V |
Input Sensitivity/Impedance | ±385mV/20KΩ, balanced Input |
Overload Electromotive Force | >11dB |
Frequency Response | 80Hz~16KHz (+1, -3dB) |
S/N Ratio | ≥85dB |
THD | ≤0.1% at 1KHz, 1/3 rated power |
RJ45 | Remote power control and fault monitor |
Indicators | Signal, peak, protection and power supply |
Protection | High temperature, overload, short circuit |
Cooling | Fan forced cooling |
Power Consumption | 2250W |
Power Supply | ~230V/50/60Hz |
Dimension | 484 x 400 x 44mm |
Weight | 8.8Kg |
More models and details, just send inquiry and contact us!
You will get professional suggestions no matter whether we can cooperate or not.
We are glad to offer advices for you.
Thanks for your time and clicking our products!
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
