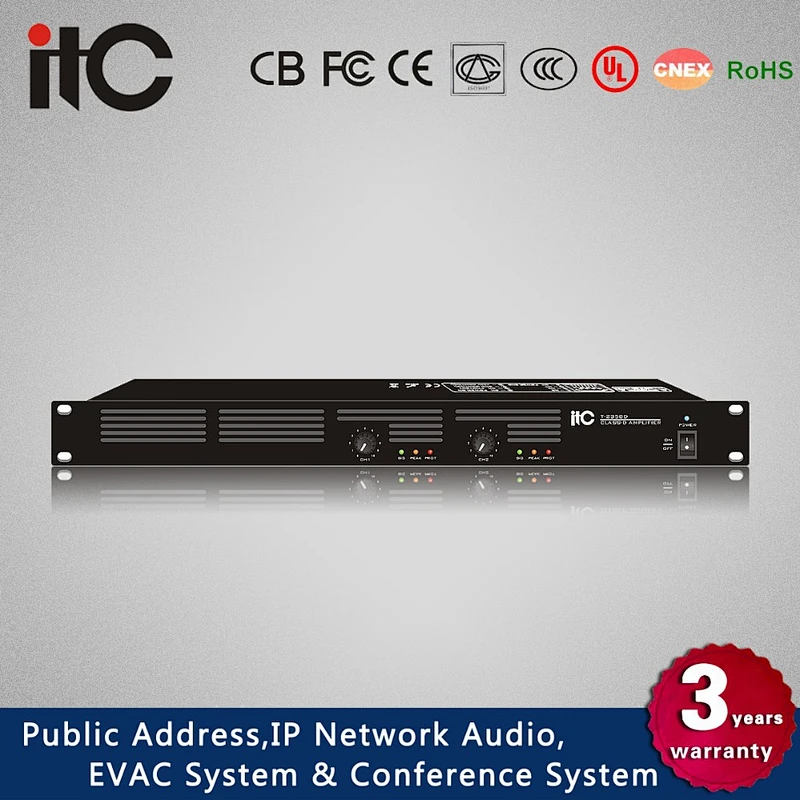

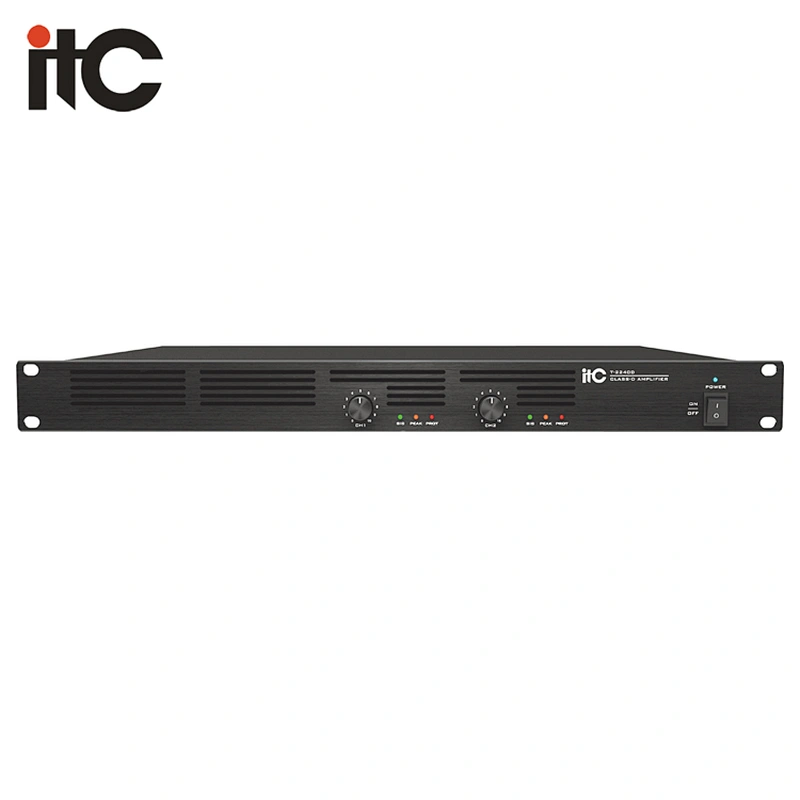

ITC T-2240D Series 85% Efficiency Dual Channel Sound Class D Digital Amplifier

ITC T-2240D Series 85% Efficiency Dual Channel Sound Class D Digital Amplifier

Model NO.: T-2240D/T-2350D/T-2500D
Delivery: FOB
Minimum order quantity: 100 units
Supply Ability: 1000 units / Week
Country of Origin: Guangzhou, Shenzhen and HK

Quantity:

Product Description

Place of Origin:CN;GUA
Model Number:T-2240D/T-2350D/T-2500D
Brand Name:ITC
Type:PROFESSIONAL AMPLIFIER
Channels:2 (2.0)
Power Output:2x240W/2x350W/2x500W
Speaker Output:100V
Sensitivity:385mV
Input Impedance:20Kohm
Overload Electromotive Force:>11dB
Frequency Response:80Hz~16KHz
S/N Ratio:≥85dB
THD:≤0.1%
Power Consumption:500W/800W/1150W
Power Supply:AC 110V or AC 230V or DC 24V

ITC T-2240D Series 85% Efficiency Dual Channel Sound Class D Digital Amplifier

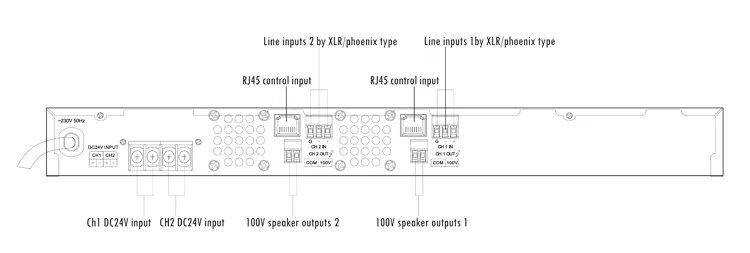

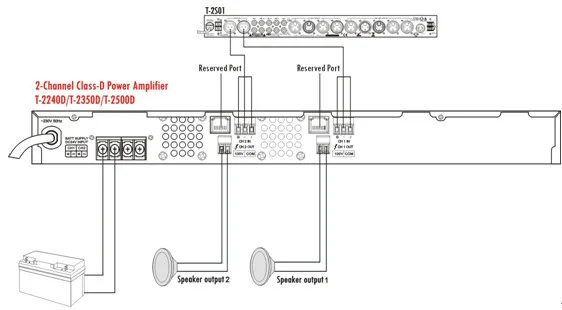

Connection

Product Description

This series is dual channel class d amplifier, which consist of 2 individual amplifiers. Optional rated power includes 240W, 350W and 500W. The amplifier is designed in both tabletop and rack mount. Shinning feature of it is to adopt tech. of power saving. Switching power is also adopted so that the efficiency is up to 85%. Thermogenesis is less than 55 degree. And it could operate at severe working condition. 2 balanced line input is in type of phoenix. 2 RJ45 is for remote power control, volume control and status monitor. 2 speaker output is at 100V and is with individual volume control. Indication displays signal, peak and protection. Power supply at DC 24V is also allowed. Cooling system ensure the system working under 55 degree. Complete protection is to avoid overheat, overload and short.

Feature

* Class-D digital power amplifier.

* Adopt switching power.

* Efficiency is up to 85%.

* Thermogenesis is less than 55 degree.

* In 1U.

* Optional rated power include 240W, 350W and 500W.

* 2 balanced line input is in type of phoenix.

* 2 RJ45 ports for remote power control, volume control and working status monitor.

* 2 speaker output is with individual volume control.

* Built in active band pass filter for 80Hz to 16KHz.

* With rational cooling system.

* Indicator displays signal, peak and protection status.

* Circuit protection for overheat, overload and short.

* Power supply is optional, such as AC 110V or 230V and DC 24V.

Specification

Model	T-2240D	T-2350D	T-2500D
Rated Power Output	2x240W	2x350W	2x500W
Speaker Output	100V
Input Sensitivity & Impedance	±385mV/20KΩ
Overload Electromotive Force	>11dB
Frequency Response	80Hz~16KHz (+1, -3dB)
S/N Ratio	≥85dB
THD	≤0.1% at 1KHz, 1/3 rated power
Remote Control	power control, volume control and status monitor
Indicator	Signal, peak, protection and power
Protection	Overheat, overload & short
cooling	Fan starts up when temp. reaches 55℃ automatically
Power Consumption	500W	800W	1150W
Power Supply	~110V/60Hz or ~230V/50Hz
Dimensions	484 x 395 x 44mm
Weight	6.64kg	6.64kg	6.62kg
