- Place of Origin:CN;GUA

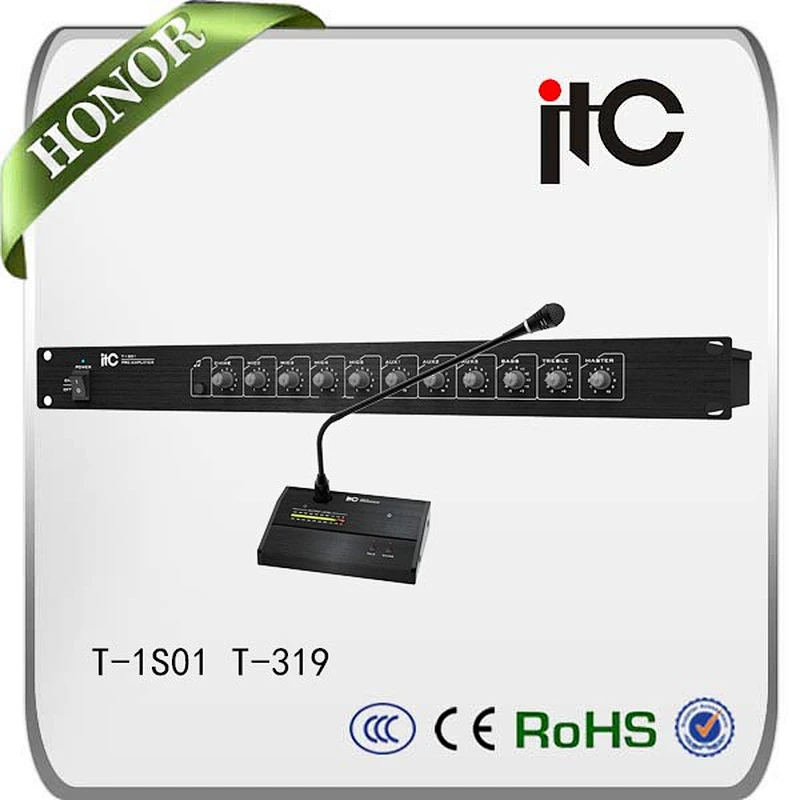

- Model Number:T-1S01 T-319
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:1
- Mic Input:Mic 1/2/3/4/5: 5mV/600 ohm, balanced
- AUX Input:AUX 1/2/3: 10Kohm/200mV, unbalanced
- Output:600 ohm/1V/0dBV
- Frequency Response:20 to 20KHz(±1dB)
- Mic Input Signal/Sensitivity:80dB
- AUX Input Signal/Sensitivity:85dB
- Bass:±10dB at 100Hz
- Treble:±10dB at 10KHz
- Power Supply:484 x 298 x 44mm
- Weight:4.22Kg
ITC Karaoke Audio Phone Preamplifier For Microphone
Your Preferred Choice for Economical PA System
Features
* 5-channel MIC input and 3-channel Aux input.
* With 1-channel EMC input.
* Independent volume control, MASTER volume control.
* With compulsive insert and Priority function.
* MIC balance input interface with phantom power.
* Individual Gain controls for MIC
* EMC has priority over all inputs except MIC 2
* Bass and Treble Tone Controls
* AC 110V or 230V and DC 24V operation

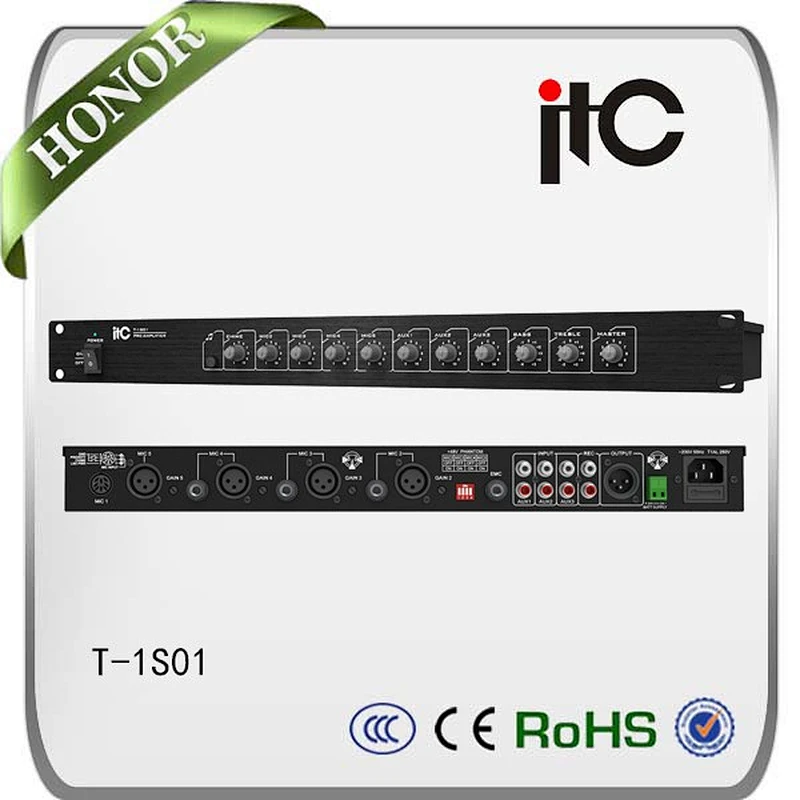

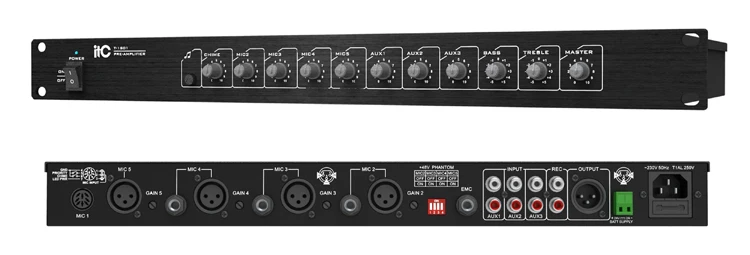

T-1S01 Descriptions
The T-1S01 is a public address pre-amplifier with five balanced MIC inputs, three AUX level inputs and one EMC
(priority) level inputs.
Priority muting is achieved via MIC 2 and EMC for overriding music for paging and emergency alarms.
Individual gain controls are provided for MIC and AUX inputs, bass and treble controls are provided for overall tone control.
Specifications
Model | T-1S01 |
Input Sensitivity & Impedance | MIC 2, 3, 4, 5: ±2.5mV/2KΩ, Balanced XLR type |
MIC 2, 3, 4: 5mV/600Ω, Unbalanced TRS type | |
AUX 1, 2, 3: 300mV/10KΩ, Unbalanced RCA type | |
EMC: 775mV/47KΩ, Unbalanced TRS type | |
MIC 1: ±385mV/20KΩ, Balanced MIC 1 | |
Output Sensitivity & Impedance | MIX OUT: ±775mV/470Ω, Balanced XLR type |
REC OUT: 200mV/470Ω, Unbalanced RCA type | |
Frequency Response | 20Hz~20KHz (±0.5dB) |
S/N Ratio | MIC input: 66dB |
AUX input: 80dB | |
THD | Less than 0.1% at 1KHz, 1/3 rated power |
Tone | Bass: ±10dB at 100Hz |
Treble: ±10dB at 10KHz | |
Mute | MIC 1 overrides other input signals |
with 0-30dB attenuation | |
Phantom Power | +48V |
Protection | AC fuse |
Power Supply | ~110V-230V 50/60Hz & DC 24V |
Dimensions | 484 x 298 x 44mm |
Weight | 4.22Kg |

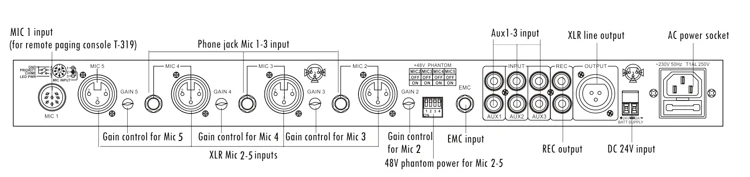

System Diagram
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
