- Place of Origin:CN;GUA
- Model Number:T-6350 series
- Brand Name:ITC
- Rated Power Output:350W/500W/650W
- Speaker Output:70V, 100V & 4~16Ω
- Balanced Input Sensitivity & Impedance:±385mV/20KΩ
- Unbalanced Input Sensitivity & Impedance:775mV/10KΩ
- Balanced Output Sensitivity & Impedance:±385mV/470Ω
- Unbalanced Output:775mV/470Ω
- Electric potential of overload:>15dB
- Frequency Response:50Hz~16KHz(+1dB, -3dB )
- S/N Ratio:>90dB
- Power Supply:~110V/60Hz or ~230V/50Hz or DC 24V

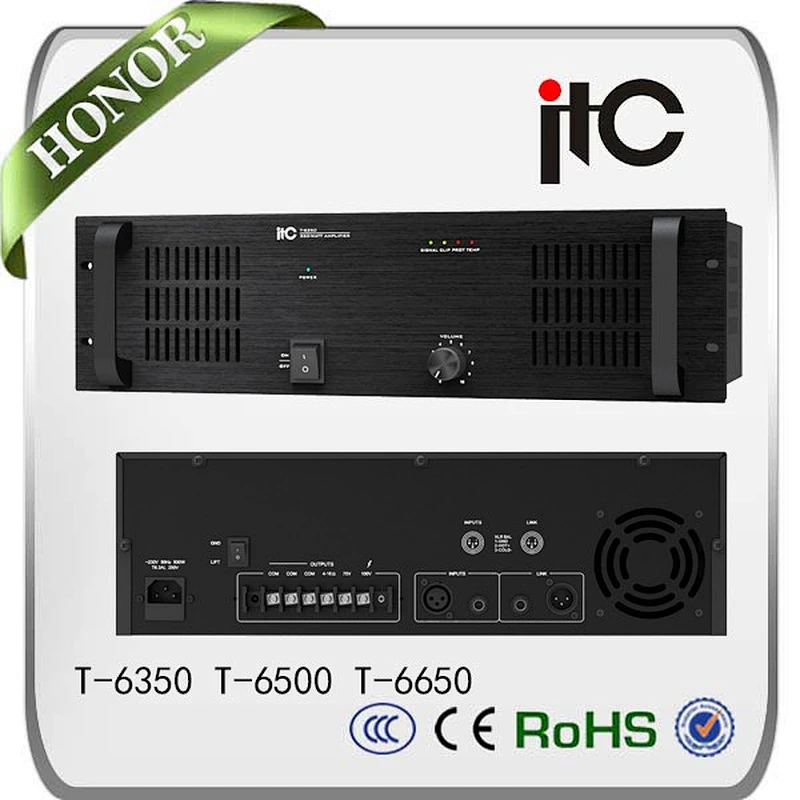

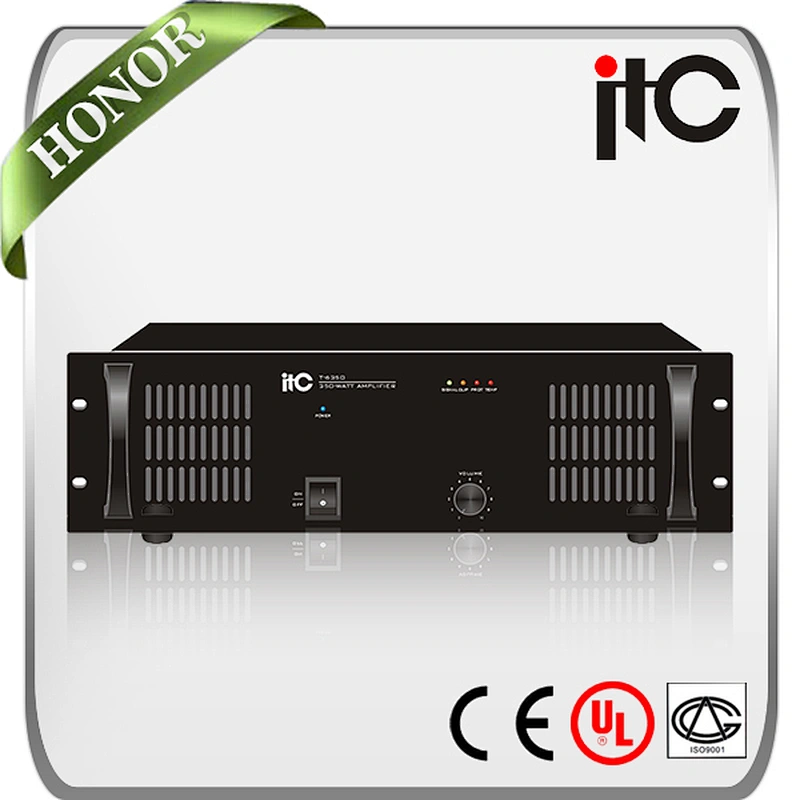

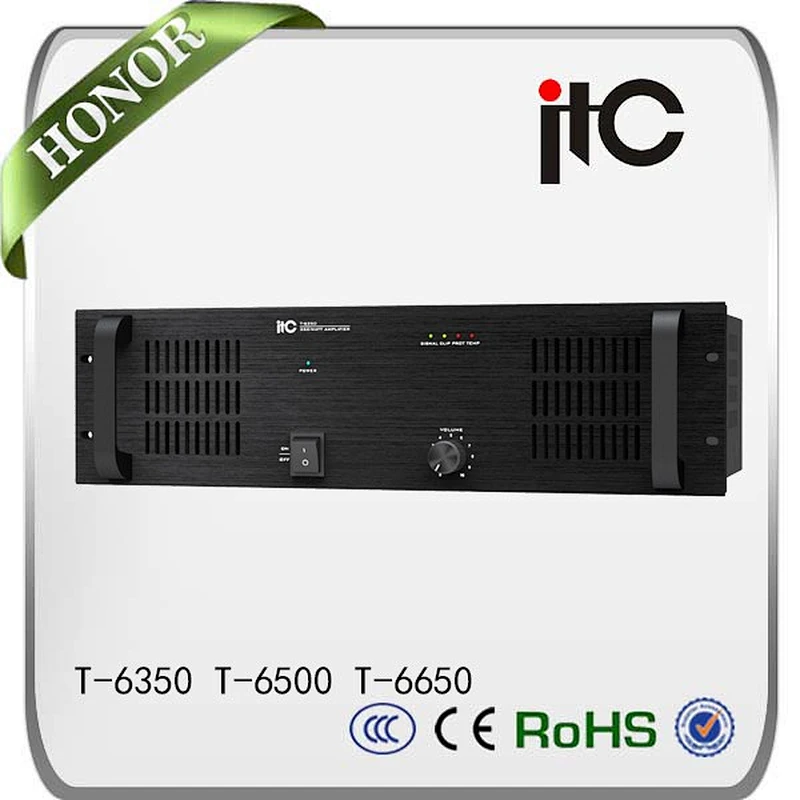

350W 500W 650W Audio Line Power Amplifier for PA System
- Standard cabinet design in 3U.

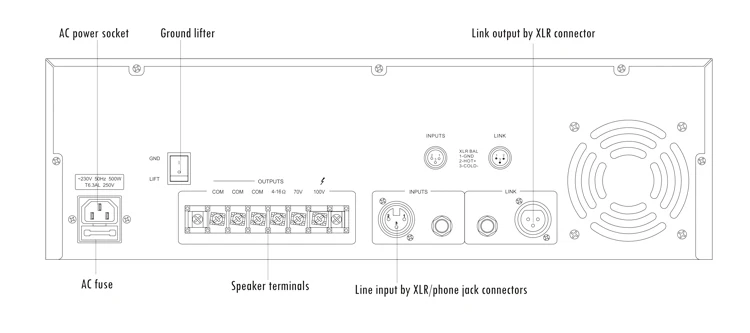

- A set of unbalanced input and output in type of TRS.
- A set of balanced input and output in type of XLR.
- With total volume control.
- Complete circuit protection for over-heat, overload, short, etc.
- 2 kinds of power output mode: constant voltage output of 100V or 70V and constant impedance output of 4 to 16 ohm.
- Power supply at DC 24V is also allowed.
Model | T-6350 | T-6500 | T-6650 |
Rated Power Output | 350W | 500W | 650W |
Speaker Output | 70V, 100V & 4~16Ω | ||
Input Sensitivity & Impedance | ±385mV/20KΩ, Balanced XLR Input 775mV/10KΩ, Unbalanced TRS Input | ||
Output Sensitivity & Impedance | ±385mV/470Ω, Balanced XLR output 775mV/470Ω, Unbalanced TRS output | ||
Electric potential of overload | >15dB | ||
Frequency Response | 50Hz~16KHz(+1dB, -3dB ) | ||
S/N Ratio | >90dB | ||
THD | Less than 0.1% at 1KHz, 1/3 rated power | ||
Ground | Connected to chassis or Suspension | ||
Cooling | Fan starts up auto. when temp. reaches 55℃ | ||
Protection | Over-heat, overload, short, etc | ||
Power Supply | ~110V/60Hz or ~230V/50Hz or DC 24V | ||
Power Consumption | 500W | 720W | 950W |
Weight | 13.72Kg | 15.24Kg | 15.6Kg |
Dimensions | 484x358x132mm | ||
Finish | Panel: aluminum, black Case: Stainless Steel, black | ||

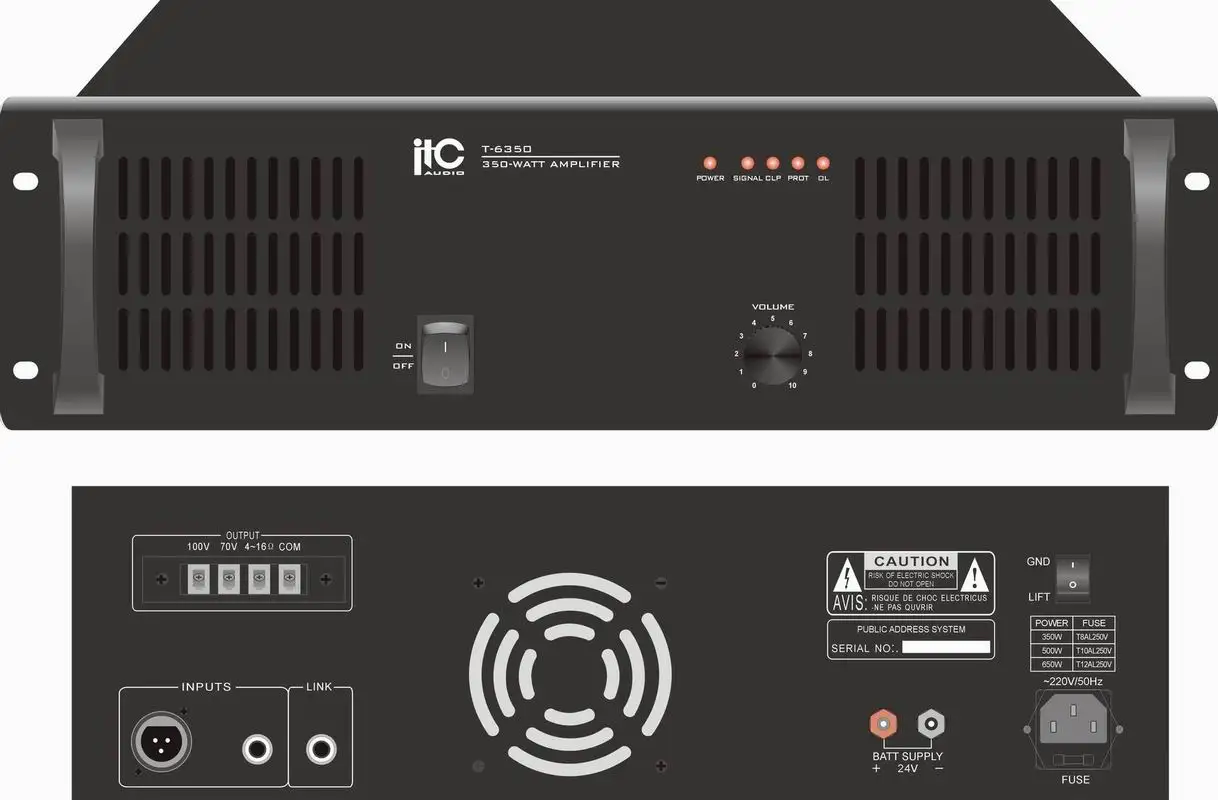

Image:
Optional
* DC 24V input available on less than 500W models
* Panel with/without handhold
* Faults monitoring module, it can output short circuit signal to achieve
main/spare amplifier switch
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
