- Place of Origin:CN;GUA
- Model Number:T-4S60
- Brand Name:ITC
- Certificate:CCC CE
- Rated Power Output:4*60W/4*120W/4*240W
- Speaker Output:70V, 100V & 4~16Ω
- Input Sensitivity & Impedance:385mV/10KΩ, Balanced phone jack type
- Frequency Response:50Hz~16KHz(+1dB, -3dB)
- S/N:>90dB
- THD:Less than 0.1% at 1KHz, 1/3 rated power
- Crosstalk:<50dB
- Protection:Over heat, over load, clip & short circuit
- Power Supply:~110V/60Hz or ~230V/50Hz or DC 24V

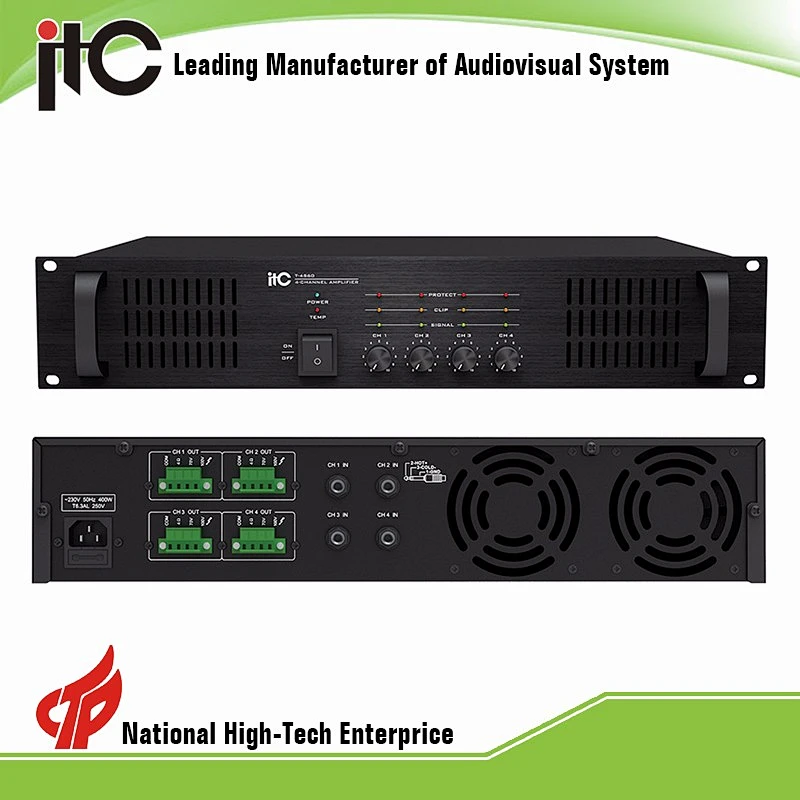

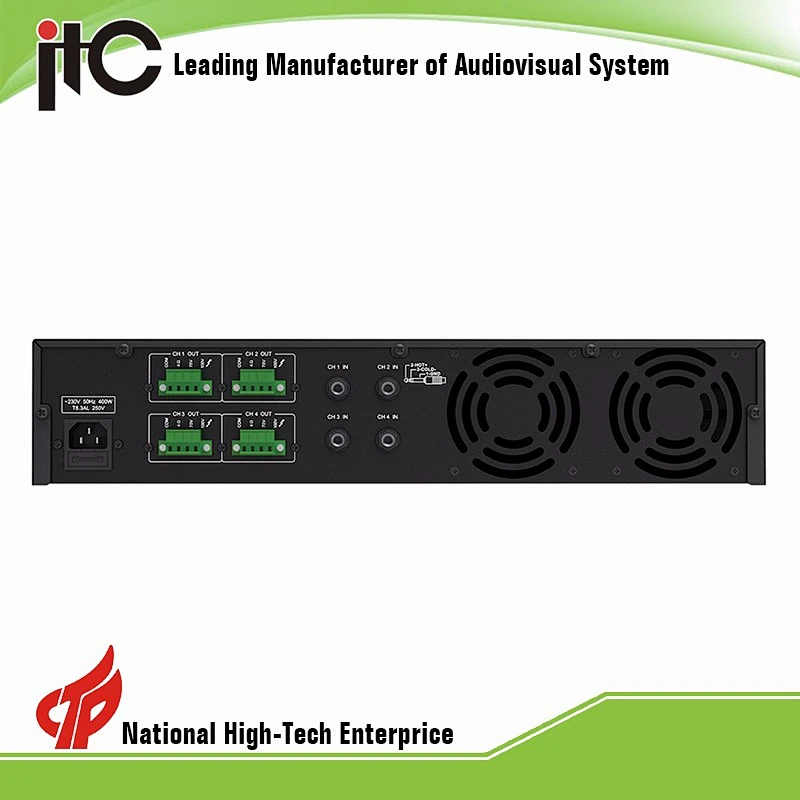

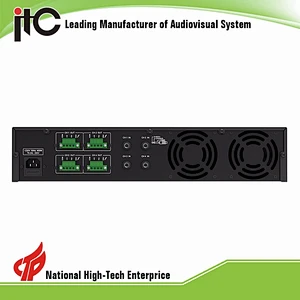

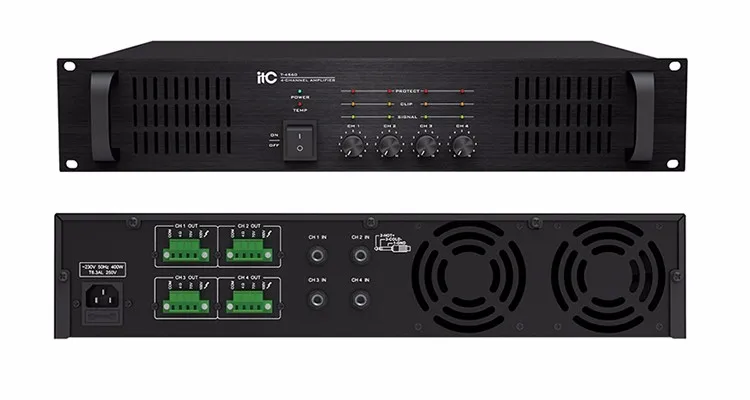

ITC T-4S60 Series 60W 120W 240W PA System 4 Channel Amplifiers
Features
* 4 individual amplifiers in 1 chassis;
* Rack mount amplifier in 2U(T-4S60/T-4S120) and 3U(T-4S240) type;
* Rated power is optional including 60W, 120W to 240W per channel;
* Constant voltage output of 70V, 100V and constant impedance output of 4-16ohm are provided for each channel in phoenix;
* Isolated transformer for safe operation;
* Balanced line input in phone jack input for each channel;
* Reliable protection for over-heat, over-load, short-circuit;
* Indications for power, signal, peak, and protection;
* Rational cooling device ensures working stably.
Model | T-4S60 | T-4S120 | T-4S240 |
Rated Power Output | 4x60W | 4x120W | 4x240W |
Speaker Output | 70V, 100V & 4~16Ω | ||
Input Sensitivity & Impedance | ±385mV/10KΩ, Balanced phone jack type | ||
Overload Electromotive Force | >15dB | ||
Frequency Response | 50Hz~16KHz(+1dB, -3dB) | ||
S/N | >90dB | ||
THD | Less than 0.1% at 1KHz, 1/3 rated power | ||
Crosstalk | <50dB | ||
Cooling | Fan automatically start up when temp reaches 55℃ | ||
Protection | Over heat, over load, clip & short circuit | ||
Power Supply | ~110V/60Hz or ~230V/50Hz or DC 24V | ||
Power Consumption | 400W | 720W | 1500W |
Weight | 16Kg | 22Kg | 30Kg |
Dimensions | 484x448x88mm | 484x449x132mm | |
Finish | Panel: aluminum plate Case: steel plate | ||
Guangzhou ITC Electronic Technology Limited
* Operate a 30,000sqmfactory
*15years of audiovisual experience
* Integrating research, production, sales and service
* 10 major product series and 1,000+ models
* Support OEM & ODM service
Packaging & Shipping
* We have very strict quality control system.
* We promise the electronics yearly failure rate is less than 1%.
* 100% products need to be aged (full loading) at least 24 hours and tested 4 times before delivery.
Exhibitions
By now, we have been successfully conducting both import and export activities worldwide for 10 years with suppliers and buyers.
We have 50 software copyright and 12 patents.
Product complied with certificates:
CE Certificate
ISO9001, ISO14001, IS018001, ISO27001
CCC Certificate: China Compulsory Certification
International Standard Product Making Certificate
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
