- Place of Origin:CN;GUA
- Model Number:T-61500
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:1
- Rated Power Output:1000W or 1500W
- Speaker Output:70V, 100V & 4~16Ω
- Input Sensitivity:±385mV
- Input Impedance:20KΩ
- Output Sensitivity:±385mV
- Output Impedance:470Ω
- Frequency Response:50Hz~16KHz(+1dB, -3dB )
- S/N Ratio:>90dB
- THD:Less than 0.3% at 1KHz, 1/3 rated power
- Ground Lift:Lift the earth line ground by switch GND/lift to"lift"position

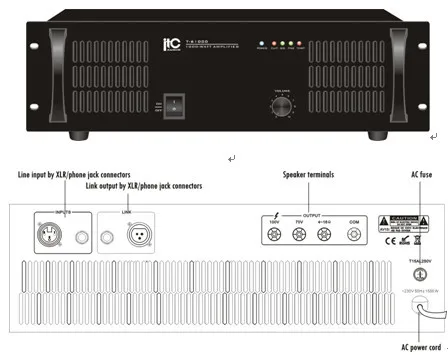

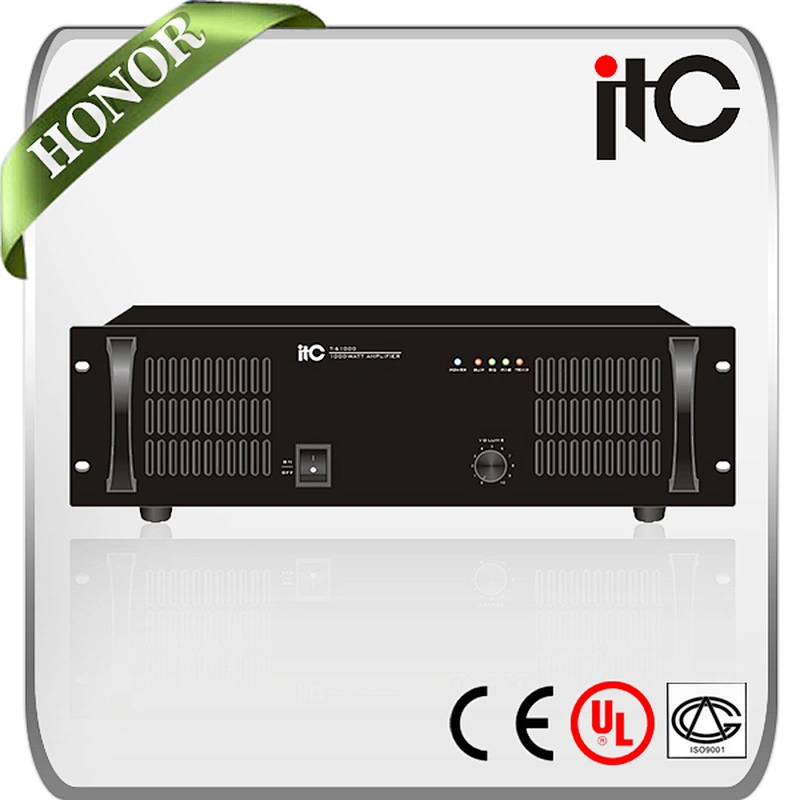

ITC T-61500 Series 1500 Watt Audio Amplifier Professional Power
* Rack mount amplifier in 3U type
* Rated power from 1000W to 1500W
* 70V, 100V and 4-16ohm speaker outputs
* Isolated transformer for human safety operation
* Balanced XLR type line input and unbalanced 1/4 inch TRS phone jack line input
* Balanced XLR type line output feeds to another power amplifier
* Reliable protection of over heat, over load, clip & short circuit
* Indications for power, signal, clip, protection and temp
* Excellent device of radiator cooling fanner that ensures working effectively
Optional
*DC 24V input available on less than 500W models
* Panel with/without handhold
* Faults monitoring module, it can output short circuit signal to achieve main/spare amplifier switch (Except for 1000W and 1500W)
Model | T-61000 | T-61500 |
Rated Power Output | 1000W | 1500W |
Speaker Outputs | 70V, 100V & 4~16Ω | |
Input Sensitivity & Impedance | ±385mV/20KΩ, Balanced XLR Input; 775mV/10KΩ, Unbalanced TRS Input | |
Output Sensitivity & Impedance | ±385mV/470Ω, Balanced XLR output; 775mV/470Ω, Unbalanced TRS output | |
Frequency Response | 50Hz~16KHz(+1dB, -3dB ) | |
S/N Ratio | >90dB | |
THD | Less than 0.3% at 1KHz, 1/3 rated power | |
Ground Lift | Lift the earth line ground by switch GND/lift to"lift"position | |
Cooling | Fan automatically start up when temp reaches 55℃ | |
Protection | Over heat, over load, clip & short circuit | |
Power Supply | ~110V/60Hz or ~230V/50Hz or DC 24V | |
Power Consumption | 1500W | 2300W |
Weight | 26Kg | 30Kg |
Dimensions | 484x530x88mm | |
Finish | Panel: aluminum plate, black Case: Steel plate, black | |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
