- Place of Origin:CN;GUA
- Model Number:T-6350/T-6500/T-6650
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:1
- Rated Power Output:350W 500W 650W
- Speaker Output:70V, 100V & 4~16Ω
- Balanced Input:±385mV/20KΩ
- Unbalanced Input:775mV/10KΩ
- Balanced Output:±385mV/470Ω
- Unbalanced Output:775mV/470Ω
- Electric potential of overload:>15dB
- Frequency Response:50Hz~16KHz(+1dB, -3dB )
- S/N Ratio:>90dB
- THD:Less than 0.1% at 1KHz, 1/3 rated power

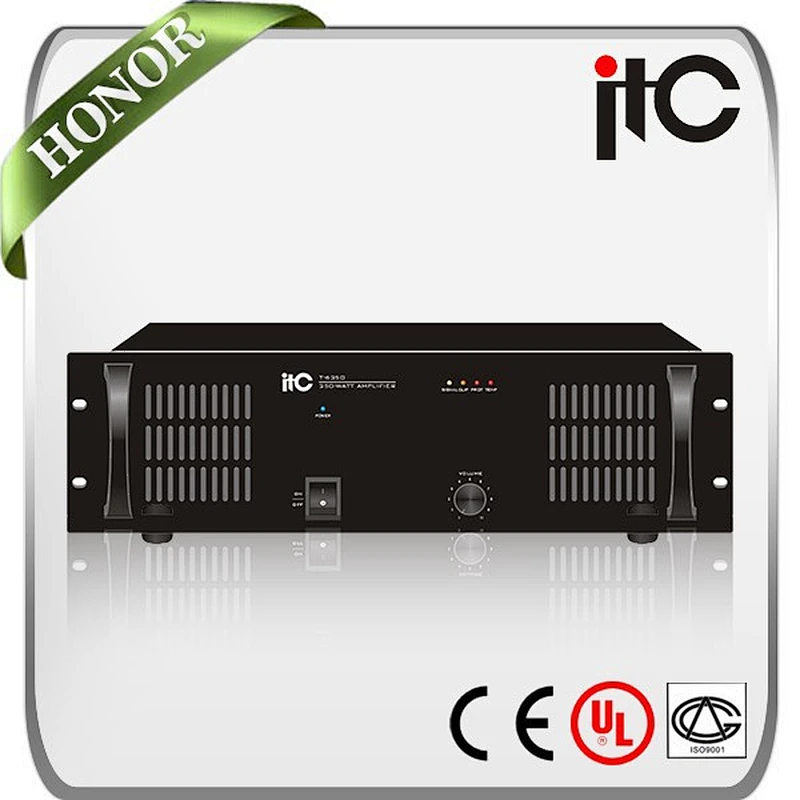

ITC T-6350 Series PA System Balanced Line Input 500W Amplifier
ITC T-6350 Series PA System Balanced Line Input 500W Amplifier
ITC T-6350 Series PA System Balanced Line Input 500W Amplifier
ITC T-6350 Series PA System Balanced Line Input 500W Amplifier
l1 channel post-class power amplifier.
lUsed to Public Address System; Suitable for large area and medium-sized venues.
ITC T-6350 Series PA System Balanced Line Input 500W Amplifier
- Standard cabinet design in 3U.
- A set of unbalanced input and output in type of TRS.
- A set of balanced input and output in type of XLR.
- With total volume control.
- Complete circuit protection for over-heat, overload, short, etc.
- 2 kinds of power output mode: constant voltage output of 100V or 70V and constant impedance output of 4 to 16 ohm.
- Power supply at DC 24V is also allowed.
ITC T-6350 Series PA System Balanced Line Input 500W Amplifier
Model | T-6350 | T-6500 | T-6650 |
Rated Power Output | 350W | 500W | 650W |
Speaker Output | 70V, 100V & 4~16Ω | ||
Input Sensitivity & Impedance | ±385mV/20KΩ, Balanced XLR Input 775mV/10KΩ, Unbalanced TRS Input | ||
Output Sensitivity & Impedance | ±385mV/470Ω, Balanced XLR output 775mV/470Ω, Unbalanced TRS output | ||
Electric potential of overload | >15dB | ||
Frequency Response | 50Hz~16KHz(+1dB, -3dB ) | ||
S/N Ratio | >90dB | ||
THD | Less than 0.1% at 1KHz, 1/3 rated power | ||
Ground | Connected to chassis or Suspension | ||
Cooling | Fan starts up auto. when temp. reaches 55℃ | ||
Protection | Over-heat, overload, short, etc | ||
Power Supply | ~110V/60Hz or ~230V/50Hz or DC 24V | ||
Power Consumption | 500W | 720W | 950W |
Weight | 13.72Kg | 15.24Kg | 15.6Kg |
Dimensions | 484x358x132mm | ||
Finish | Panel: aluminum, black Case: Stainless Steel, black | ||
Quality?
Our products're applied to important event like Olympic Game Peking 2008, Asian Game Guangzhou 2010, etc.
Trustworthy?
We're not only popular supplier in China but has good reputation in the world.
In time?
We have the ability and we'll try our best to fulfill your demand.
Factory?
Welcome to NO.1 Building B Block Zhongcun Street Panyu Guangzhou China.
