- Place of Origin:CN;GUA
- Model Number:T-4S60/T-4S120/T-4S240
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:4
- Rated Power Output:4*60W/4*120W/4*240W
- Speaker Output:70V, 100V & 4~16Ω
- Input Sensitivity & Impedance:±385mV/10KΩ, Balanced phone jack type
- Overload Electromotive Force:>15dB
- Frequency Response:50Hz~16KHz
- S/N Ratio:>90dB
- THD:Less than 0.1% at 1KHz, 1/3 rated power
- Crosstalk:<50dB
- Power Consumption:400W/720W/1500W
- Weight:16Kg/22Kg/30Kg

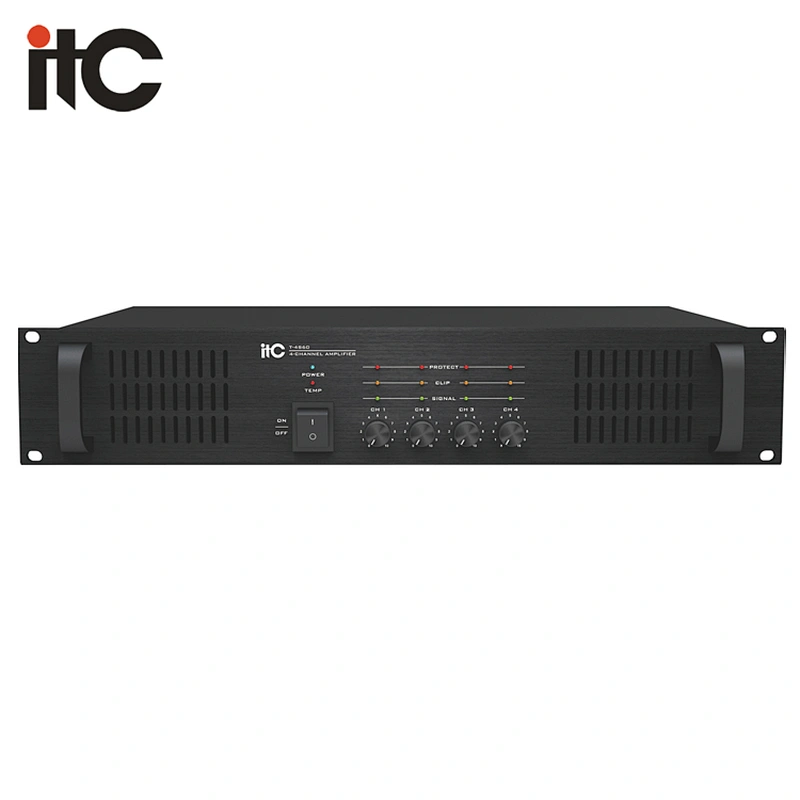

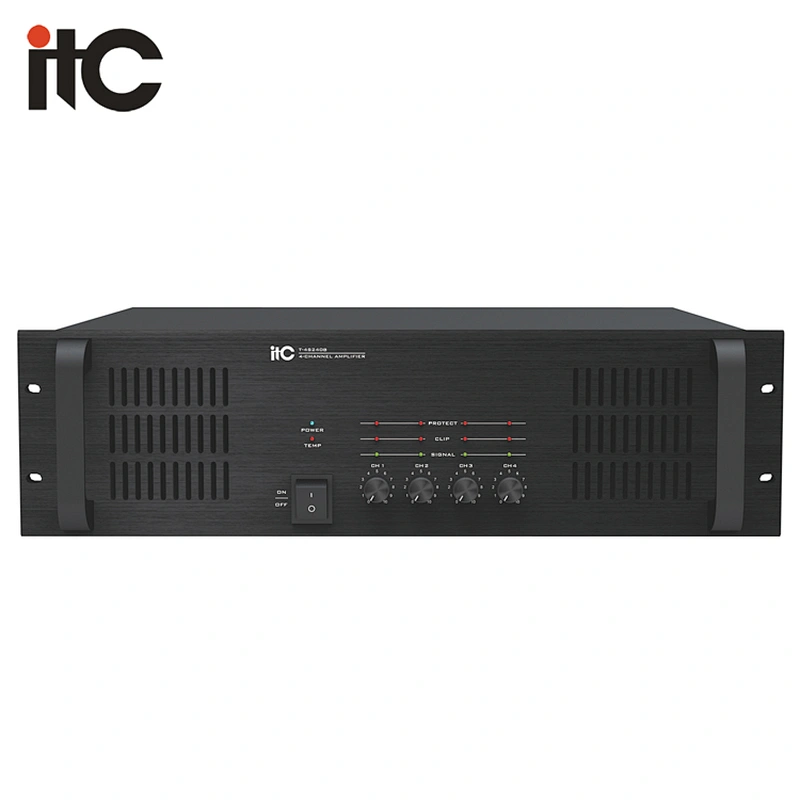

ITC T-4S120 Series 60W 120W 240W Power Amplifier 4 Channel
ITC T-4S120 Series 60W 120W 240W Power Amplifier 4 Channel
4 channel power amplifiers are designed for commercial and industrial public address application. 4 individual amplifiers are integrated in a single chassis and its rated power is optional including 60W, 120W and 240W per channel according to your demand. T-4S60/T-4S120 are in 2U while T-4S240 is in 3U.

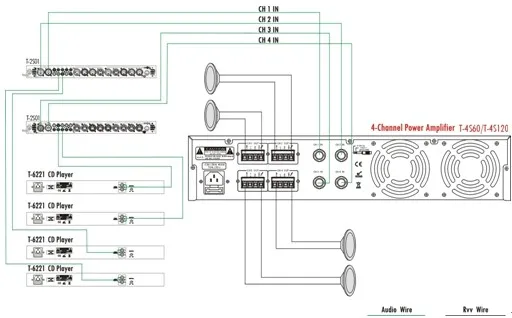

Balanced line input is in phone jack. Constant voltage output of 70V, 100V and constant impedance output of 4-16ohm are provided for each channel by phoenix types, which is convenient for installation when matching different speaker.
Master volume control is included. Complete protection for over-heat, over-load, short-circuit. Indication for power, signal, peak and protection.
ITC T-4S120 Series 60W 120W 240W Power Amplifier 4 Channel
* 4 individual amplifiers in 1 chassis;
* Rack mount amplifier in 2U(T-4S60/T-4S120) and 3U(T-4S240) type;
* Rated power is optional including 60W, 120W to 240W per channel
* Constant voltage output of 70V, 100V and constant impedance output of 4-16ohm are provided for each channel in phoenix;
* Isolated transformer for safe operation;
* Balanced line input in phone jack input for each channel;
* Reliable protection for over-heat, over-load, short-circuit;
* Indications for power, signal, peak, and protection
* Rational cooling device ensures working stably.
Optional
Power supplied at DC 24V is also allowed.
ITC T-4S120 Series 60W 120W 240W Power Amplifier 4 Channel
Model | T-4S60 | T-4S120 | T-4S240 |
Rated Power Output | 4x60W | 4x120W | 4x240W |
Speaker Output | 70V, 100V & 4~16Ω | ||
Input Sensitivity & Impedance | ±385mV/10KΩ, Balanced phone jack type | ||
Overload Electromotive Force | >15dB | ||
Frequency Response | 50Hz~16KHz(+1dB, -3dB) | ||
S/N Ratio | >90dB | ||
THD | Less than 0.1% at 1KHz, 1/3 rated power | ||
Crosstalk | <50dB | ||
Cooling | Fan automatically start up when temp reaches 55°C | ||
Protection | Over heat, over load, clip & short circuit | ||
Power Supply | ~110V/60Hz or ~230V/50Hz or DC 24V | ||
Power Consumption | 400W | 720W | 1500W |
Weight | 16Kg | 22Kg | 30Kg |
Dimensions | 484x448x88mm | 484x449x132mm | |
Finish | Panel: aluminum plate Case: steel plate | ||
Quality?
Our products're applied to important event like Olympic Game Peking 2008, Asian Game Guangzhou 2010, etc.
Trustworthy?
We're not only popular supplier in China but has good reputation in the world.
In time?
We have the ability and we'll try our best to fulfill your demand.
Factory?
Welcome to NO.1 Building B Block Zhongcun Street Panyu Guangzhou China.
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
