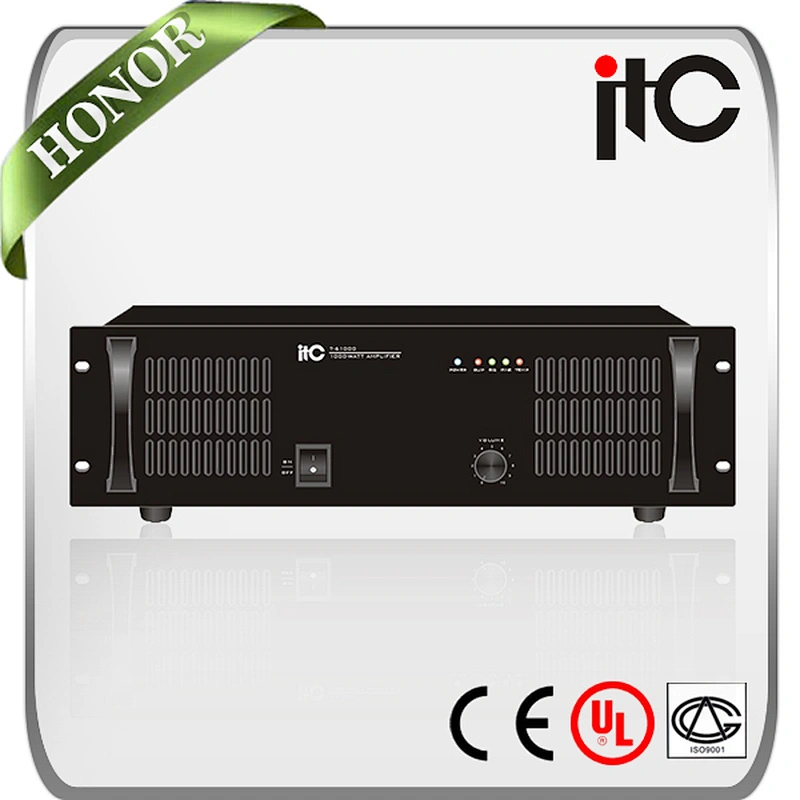

1 Channel Public Address 1000W Professional Power Amplifier

1 Channel Public Address 1000W Professional Power Amplifier

Model NO.: T-61000/T-61500
Delivery: FOB
Minimum order quantity: 100 units
Supply Ability: 1000 units / Week
Country of Origin: Guangzhou, Shenzhen or HK

Quantity:

Product Description

Place of Origin:CN;GUA
Model Number:T-61000/T-61500
Brand Name:ITC
Rated Power Output:1000W/1500W
Speaker Output:70V, 100V & 4~16Ω
Input Sensitivity:±385mV
Input Impedance:20KΩ
Output Sensitivity:±385mV
Output Impedance:470Ω
Frequency Response:50Hz~16KHz(+1dB, -3dB )
S/N Ratio:>90dB
THD:Less than 0.3% at 1KHz, 1/3 rated power
Weight:25.8Kg/27.08Kg

Product Description

Descriptions

The range of power amplifiers are designed for general commercialandindustrial public address applications. Rack mount design in 3U type, rated power ranges from 350W, 500W, 650W, 1000W to 1500W which provides a wide selection to meet different size sound system needs. Both balanced and unbalanced line inputs make it selectable for installer, balanced line output feeds to another power amplifier as well as secures the signal transmission is less noise and longer distance. 70V, 100V and 4-16ohm speaker outputs are convenient for installation when selecting different speaker matching. A master volume control is included. Complete protection includes clip, short circuit, high temp and overload. Indications for power, signal, clip, protection and temp.

Feature

Standard rack design in 3U.

1 unbalanced line input in type of TRS and the matching output.

1 balanced line input in type of XLR and the matching output.

With total volume control in the front panel.

Complete circuit protection for short, over-heat, overload, etc.

2 kinds of rated power output: constant voltage output of 100V or 70V and constant impedance output of 4 to 16 ohm.

Power supply at DC 24V is also allowed.

Specification

Model	T-61000	T-61500
Rated Power Output	1000W	1500W
Speaker Output	70V, 100V & 4~16Ω
Input Sensitivity & Impedance	±385mV/20KΩ, Balanced XLR Input; 775mV/10KΩ, Unbalanced TRS Input
Output Sensitivity & Impedance	±385mV/470Ω, Balanced XLR output; 775mV/470Ω, Unbalanced TRS output
Frequency Response	50Hz~16KHz(+1dB, -3dB )
S/N Ratio	>90dB
THD	Less than 0.3% at 1KHz, 1/3 rated power
Ground	Connected to the cabinet or suspension
Cooling	Fan starts up automatically when temp. >55℃
Protection	Short, overload, over-heat, etc
Power Supply	~110V/60Hz or ~230V/50Hz or DC 24V
Power Consumption	1500W	2300W
Weight	25.8Kg	27.08Kg
Dimension	484x530x88mm
Finish	Panel: aluminum, black Case: Stainless steel plate, black

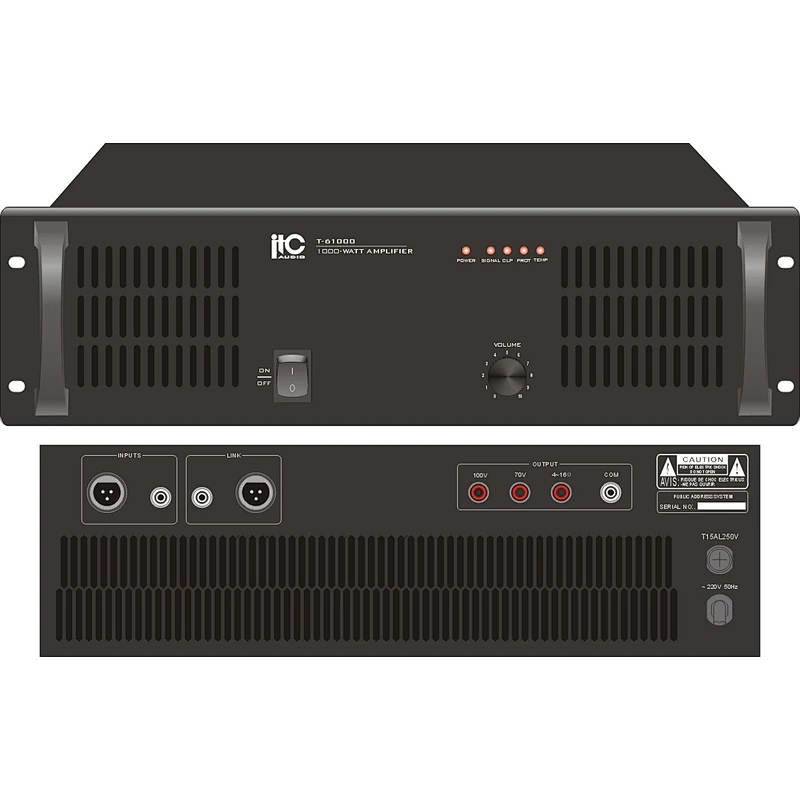

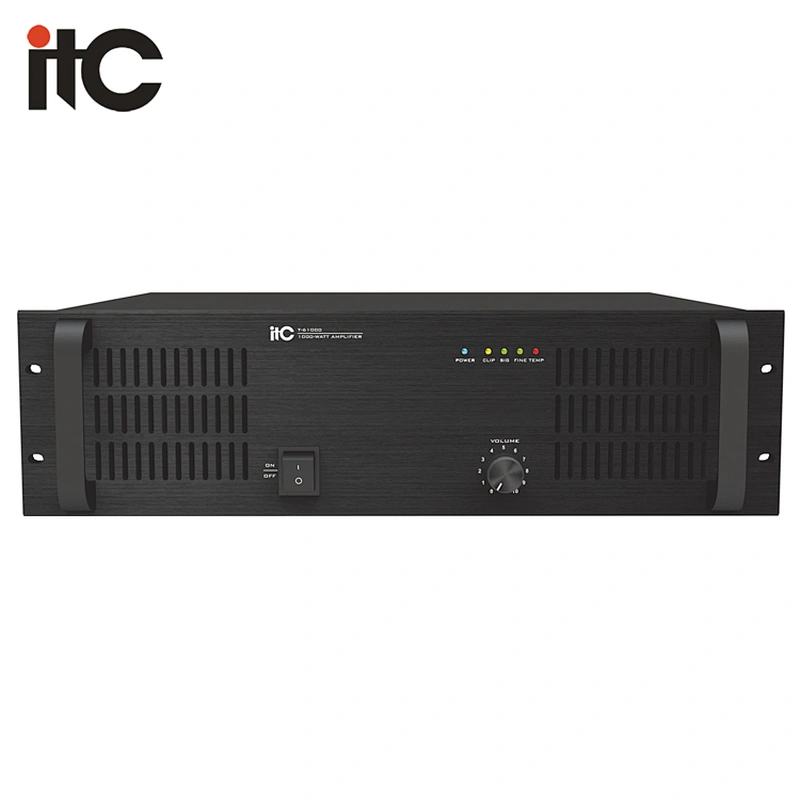

Font Panel Introduce

Rear Panel Introduce

Rear Panel Connection
