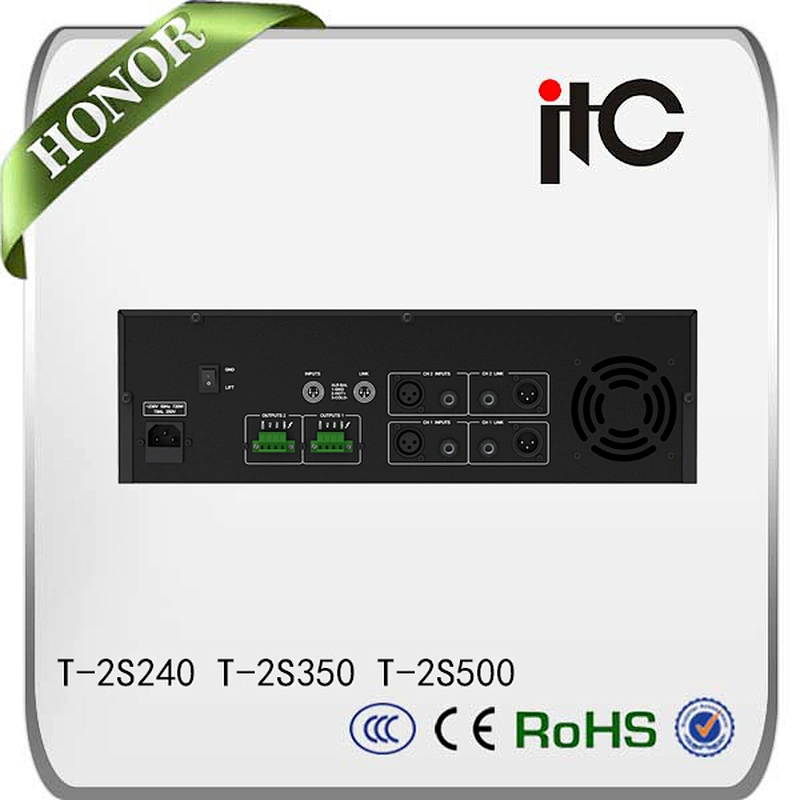

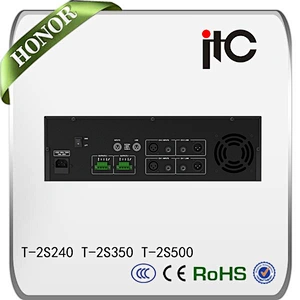

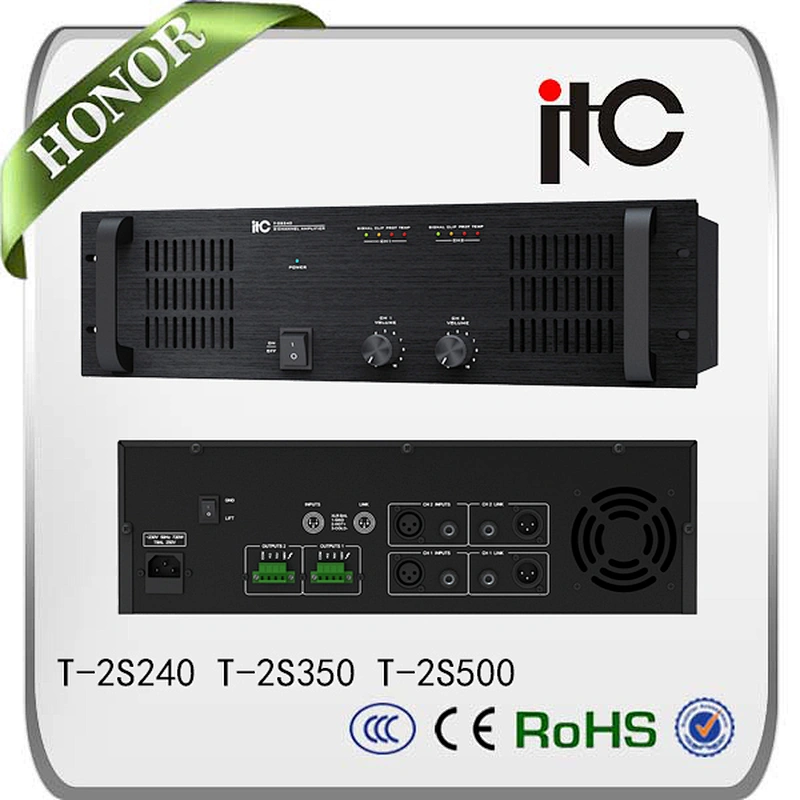

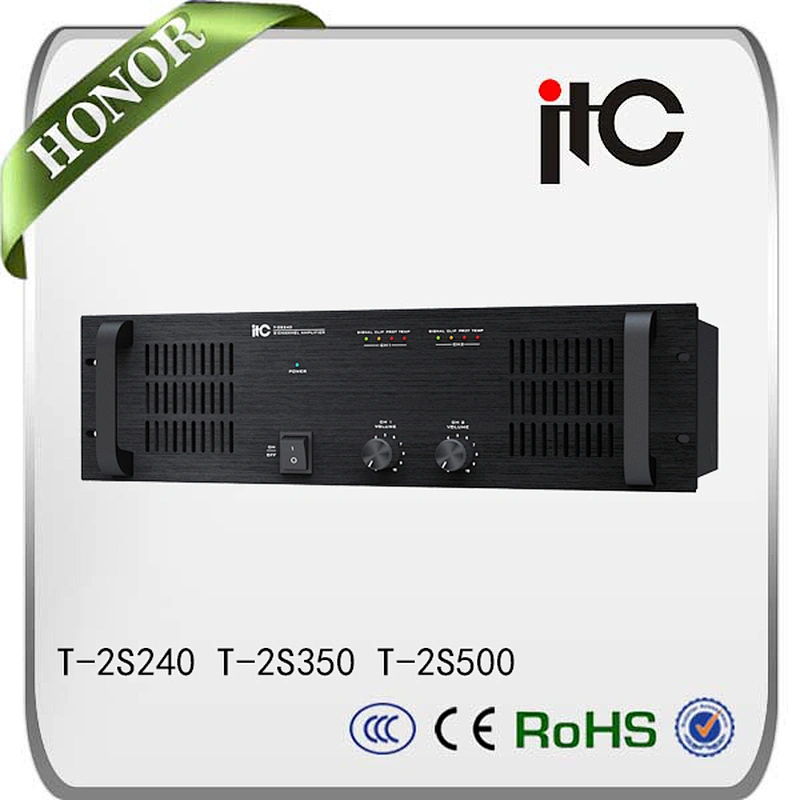

ITC T-2S240 Series 500W 2 Channel Mono Audio Power Amplifier

• Place of Origin:CN;GUA
• Model Number:T-2S240/T-2S350/T-2S500
• Brand Name:ITC
• Type:PROFESSIONAL AMPLIFIER
• Channels:2 (2.0)
• Rated Power Output:2x240W/2x350W/2x500W
• Speaker Output:70V, 100V & 4~16 ohm
• Input Sensitivity & Impedance:±385mV/20KΩ, Balanced XLR Input; 775mv/10KΩ, Unbalanced TRS Input
• Output Sensitivity & Impedance:±385mvV/470Ω, Balanced XLR output; 775mv/470Ω, Unbalanced TRS output
• Electric Potential of Overload:>15dB
• Frequency Response:50Hz~16KHz (+1dB, -3dB)
• S/N Ratio:>90dB
• THD:Less than 0.1% at 1KHz, 1/3 rated power
• Crosstalk:<50dB
• Cooling:Temp. ≥55℃, the Fan Starts Auto.

ITC T-2S240 Series 500W 2 Channel Mono Audio Power Amplifier

1) Rack mount design in 3U

2) 2 unbalanced Line input in type of TRS, and 2 unbalanced Line output in type of TRS

3) 2 balanced Line input in type of XLR, and 2 balanced Line input in type of XLR

4) 2 channel has individual volume control

5) With switcher for ground wire suspension; When multiple devices are connected, the switcher help to avoid noise from ground loop

6) With complete protection circuit for short, overload, over-heat, etc

7) 2 modes of power output: constant voltage output at 100V or 70V; constant impedance output at 4 to 16 ohm

8) Power supply at DC 24V is also allowed

Application

1)2 Channel Small Power Post-class amplifier

2)To do sound reinforce for PA system; Suitable for PA system which needs multiple post-class amplifiers

Specification
