- Place of Origin:CN;GUA
- Model Number:T-350/T-550/T-650
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:2 (2.0)
- Rated Power Output:350W 550W 650W
- Speaker Output:70V, 100V & 4~16Ω
- Output Sensitivity:1V
- Impedance:470Ω
- Tone:Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz
- Frequency Response:50Hz~16KHz(+1dB, -3dB)
- S/N Ratio:MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB
- THD:Less than 0.5% at 1KHz, 1/3 rated power
- Crosstalk:≤50dB
- Power Supply:~110V/60Hz or ~230V/50Hz or DC 24V

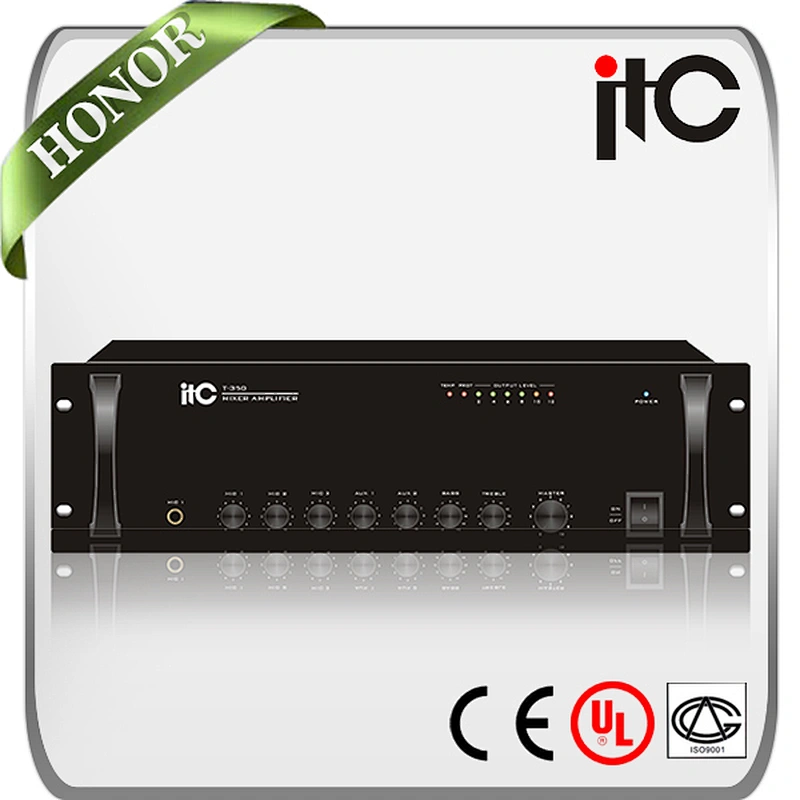

Multiple Module Selection Public Address Sound Power Amplifier
The basic public address integrated amplifier have power ratings from 60W, 120W, 240W, 350W, 500W to 650W. They are featured of 3 microphone inputs, 2 aux inputs and 1 EMC input. Priority muting is achieved via EMC for overriding other inputs except Mic1 on front panel. Individual gain controls are provided for Mic 1-3 and Aux 1-2, bass and treble controls and master volume control are provided for overall tone control. 70V, 100V and low impedance 4-16ohms speaker outputs are provided. Extensive protection from short-circuit, overload and high temp.
Features
* Integrated amplifier for paging and background music system
* Rated power from 60W, 120W, 240W, 350W, 500W to 650W
* 2U rack mount (less than 350W) and 3U rack mount design
* 70V, 100V and low impedance 4-16ohm speaker output
* Three Mic inputs by phone jack type
* Mic 1 with VOX priority and VOX level on front panel
* Mic 2-3 by phone jack on rear panel
* Two Aux Inputs and 2 line inputs for spare use
* One EMC priority input
* EMC has priority over all inputs except MIC1
* Mic 1-3, Aux 1-2 and master volume controls and bass/treble tone control
* Short circuit, overload and high temp protection
Optional
* DC 24V available on less than 500W models
* Panel with/without handhold
* Faults monitoring module, it can output short circuit signal to achieve main/spare amplifier switch
Model | T-350 | T-550 | T-650 |
Rated Power Output | 350W | 550W | 650W |
Speaker Output | 70V, 100V & 4~16Ω | ||
Input Sensitivity & Impedance | MIC 1, 2, 3: 5mV/600Ω , Unbalanced phone jack input MIC 2, 3: 775mV/10KΩ, Unbalanced RCA input AUX 1, 2: 350mV/10KΩ , Unbalanced RCA input EMC: 775mV/10KΩ , Unbalanced RCA input | ||
Output Sensitivity & Impedance | MIX OUT: 1V/470Ω , Unbalanced RCA output | ||
Tone | Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz | ||
Frequency Response | 50Hz~16KHz(+1dB, -3dB) | ||
S/N Ratio | MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB | ||
THD | Less than 0.5% at 1KHz, 1/3 rated power | ||
Muting Function | MIC 1 overrides other input signals with 0-30dB attenuation | ||
Crosstalk | ≤50dB | ||
Cooling | Fan automatically start up when temp reaches 55°C | ||
Protection | High temp, overload & short-circuit | ||
Power Supply | ~110V/60Hz or ~230V/50Hz or DC 24V | ||
Power Consumption | 500W | 750W | 950W |
Weight | 18.5Kg | 22.2Kg | 23.5Kg |
Dimensions | 484 x 385x132mm | ||
Finish | Panel: aluminum plate, black Case: steel plate, black | ||
Guangzhou ITC Electronic Technology Limited
* Operate a 30,000sqmfactory
*15years of audiovisual experience
* Integrating research, production, sales and service
* 10 major product series and 1,000+ models
* Support OEM & ODM service
* We have very strict quality control system.
* We promise the electronics yearly failure rate is less than 1%.
* 100% products need to be aged (full loading) at least 24 hours and tested 4 times before delivery.
We have 50 software copyright and 12 patents.
Product complied with certificates:
CE Certificate
ISO9001, ISO14001, IS018001, ISO27001
CCC Certificate: China Compulsory Certification
International Standard Product Making Certificate
Our sound system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou Asian Games and Expo 2016 Antalya. For now, we have up to 300,000 successful cases worldwide.
Buy now, we have been successfully conducting both import and export activities worldwide for 10 years with suppliers and buyers.
