- Place of Origin:CN;GUA
- Model Number:T-10APT- 20APT- 40AP
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:2 (2.0)
- Rated Power:10W2 0W4 0W
- Speaker Output:4 to 16 ohm, 70V/100V
- Sensitivity/Impedance of Input:1V/50Kohm
- S/N Ratio:Less than 90dB
- Frequency Response:50Hz to 16KHz
- Front Output:0dBV/600ohm
- T.H.D.:<0.5%
- Line Output:10dB/3 Kohm
- Cooling:Forced Wind
- Dimension (mm):200 x 153 x 45mm2 76 x 226 x 66 mm483 x 303 x 88 mm
ITC tabletop audio amplifier 12v dc,wall mounted amplifier,mini power mixer amplifier price

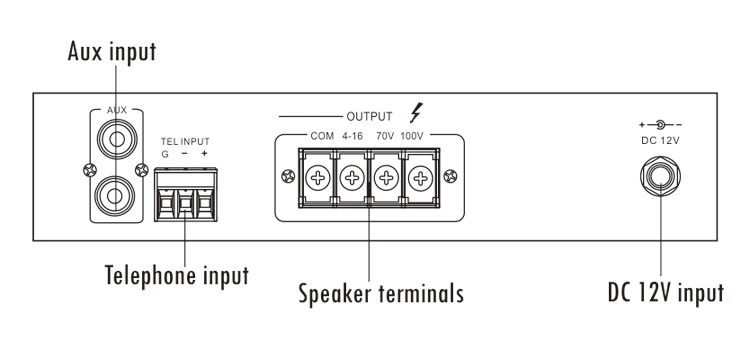

Wall mount or tabletop designs available. Mic1 input by 1/4"phone jack, Aux1 input by dual RCA, tel input by phoenix connector. Mic with Vox priority and telephone input with secondary
input over all other inputs. 100V and 4-16 ohms speaker outputs. AC 120V or 230V to DC 12V power adapter to supply power. Mic1, Aux1 and tel volume control and bass/treble tone control.
Wall mount bracket available.
Specification:
Model | T-10AP | T-20AP | T-40AP | T-60AP | T-120AP | T-240AP | |||||
Rated Power Output | 10W | 20W | 40W | 60W | 120W | 240W | |||||
Speaker Outputs | 70V, 100V & 4~16Ω | ||||||||||
Input Sensitivity & Impedance | MIC1, 2, 3: 5mV/600Ω, Unbalanced TRS input | ||||||||||
MIC1: ±2.5mV/2KΩ | |||||||||||
TEL: ±175mV/10KΩ | |||||||||||
AUX: 350mV/10KΩ, Unbalanced RCA input | |||||||||||
Output Sensitivity & Impedance | LINE OUT: 1V/470Ω, Unbalanced RCA output | ||||||||||
Overload ElectromotiveForce | MIC 1, 2, 3: >10dB | ||||||||||
MIC1: >15dB | |||||||||||
AUX: >15dB, Unbalanced RCA input | |||||||||||
TEL: >12dB | |||||||||||
Tone | Bass: ±10dB, Treble: ±10dB | ||||||||||
Frequency Response | 50Hz~16KHz (+1dB, -3dB) | ||||||||||
S/N Ratio | MIC: 66dB, AUX: 80dB | ||||||||||
THD | Less than 0.5% at 1KHz, 1/3 rated power | ||||||||||
Muting Function | MIC 1 overrides other input signals with 30dB attenuation | ||||||||||
Crosstalk | ≥50dB | ||||||||||
Phantom Power | +48V | ||||||||||
Cooling | Button-up convert automatic cool | ||||||||||
Protection | High temp, overload & short-circuit | ||||||||||
Power Supply | ~110V-230V 50/60Hz | ||||||||||
Power Consumption | 20W | 40W | 70W | 100W | 200W | 340W | |||||
Weight | 1.8Kg | 3.56 Kg | 4.6Kg | 7.8Kg | 9.2Kg | 11.5Kg | |||||
Dimensions | 200 x 153 x 45mm | 276 x 226 x 66mm | 483 x 303 x 88mm | 483 x 358 x 88mm | |||||||
Finish | Panel: aluminum plate, black Case: SPCC Panel | ||||||||||
* Input Sensitivity & Impedance:MIC1, 2, 3: 5mV/600Ω, Unbalanced TRS input;
MIC1;
±2.5mV/2KΩ;
TEL: ±175mV/10KΩ;
* Output Sensitivity & Impedance:MIC 1, 2, 3: >10dB;
MIC1: >15dB;
AUX: >15dB, Unbalanced RCA input
* Protection:High temp, overload & short-circuit
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our product are complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
