- Place of Origin:CN;GUA
- Model Number:T-60FP T-120FP T-240FP
- Brand Name:ITC
- Rated Power Output:60W/120W/240W
- Speaker Output:70V, 100V & 4~16Ω
- Tone:Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz
- Frequency Response:50Hz~16KHz( +1dB, -3dB)
- S/N Ratio:MIC 1, 2, 3, 4: 66dB; AUX: 76dB
- THD:Less than 0.1% at 1KHz, 1/3 rated power
- Mute:MIC 1~4 overrides other input signals
- Gain Control:MIC 2, 3 XLR, ±2.5mV~±75mV at 30dB
- Crosstalk:≤50dB
- Protection:High temp, overload & short-circuit

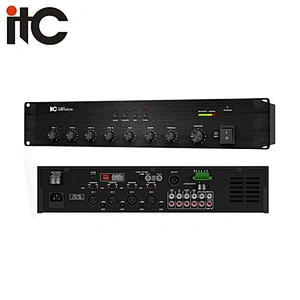

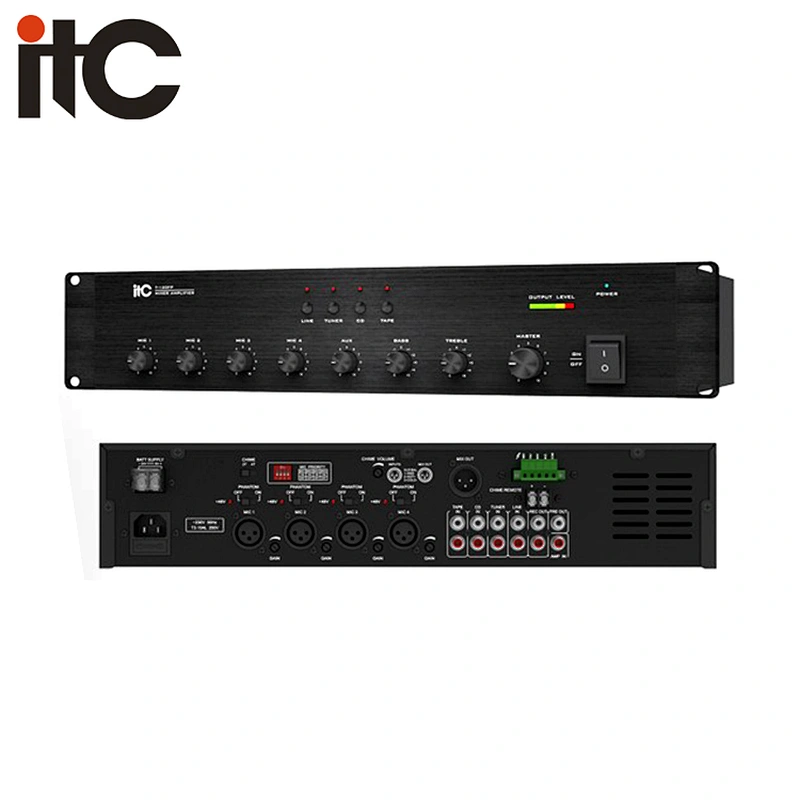

Public Address PA Sound 4-Channel Powered Mixer Amplifier 120W 100V
The FP series amplifier is a 2U (less than 240W) mixer amplifier featuring 70V, 100V and
4-16ohm speaker outputs & 4 universal balanced XLR mic inputs with phantom power.
The amplifier rated power ranges is from 60W, 120W, 240W to 350W, 500W (3U).

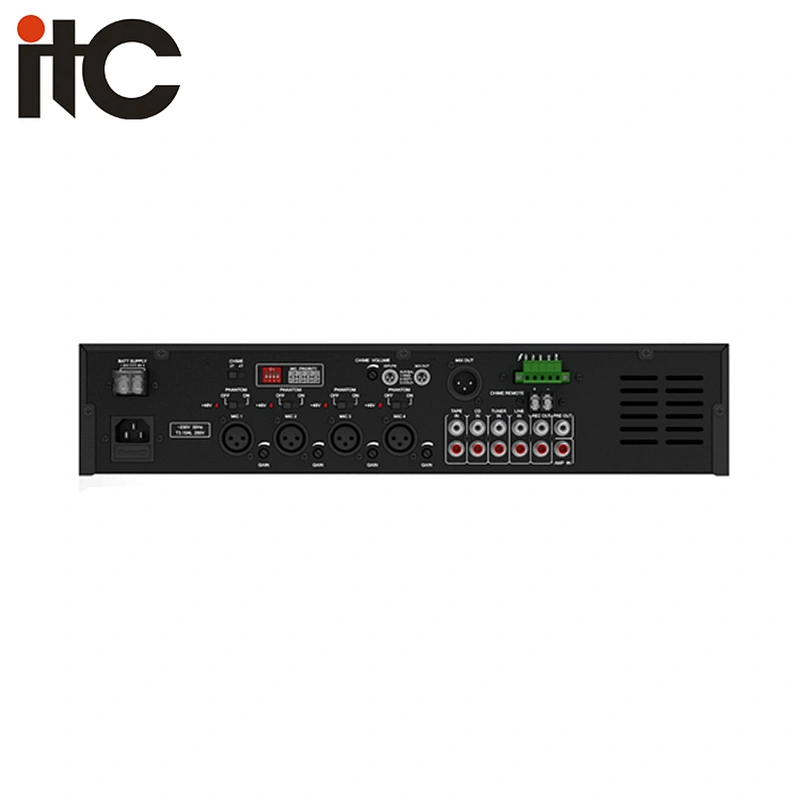

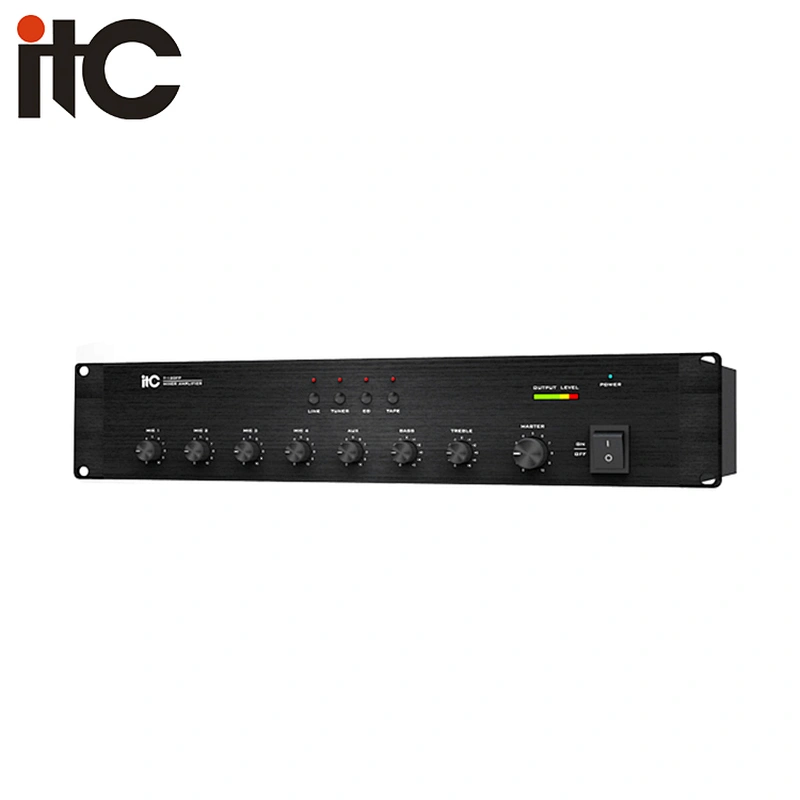

There are 4 audio source selectors on the front panel. 4 Aux inputs by dual RCA type are
located on the rear panel. Mic 1-4 with Vox priority selectors. The amplifier is also built-in
pre-announcement chime with volume control and remote chime trigger.
The REC output for tape recorder and PRE output, AMP input for adding extra signal processor
like mixer, graphic equalizer.
Volume control over Mic1-4, aux, master & overall treble/bass controls are provided.
Complete protection includes short circuit and thermal protection, current limiter and
overloading.
Model | T-60FP | T-120FP | T-240FP |
Rated Power Output | 60W | 120W | 240W |
Speaker Outputs | 50V, 70V, 100V & 4~16Ω | ||
Input Sensitivity & Impedance | MIC 1, 2, 3, 4: ±2.5mV/2KΩ, Balanced XLR input | ||
Output Sensitivity & Impedance | REC OUT: 200mV/470Ω, Unbalanced RCA output | ||
PRE OUT: 1000mV/470Ω, Unbalanced RCA output | |||
Overload | MIC 1, 2, 3, 4: >15dB | ||
Electromotive Force | AUX: >18dB | ||
Tone | Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz | ||
Frequency Response | 50Hz~16KHz (+1dB, -3dB) | ||
S/N Ratio | MIC 1, 2, 3, 4: 66dB; AUX: 76dB | ||
THD | Less than 0.1% at 1KHz, 1/3 rated power | ||
Muting Function | MIC 1~4 overrides other input signals | ||
Gain Control | ±2.5mV~±75mV at 30dB | ||
Crosstalk | ≤50dB | ||
Phantom Power | +48V with LED indicator | ||
Chime | 2 tone and 4 tone options | ||
Cooling | Fan automatically start up when temp | ||
Protection | High temp, overload & short-circuit | ||
Power Supply | ~110V-230V 50/60Hz | ||
Power Consumption | 100W | 200W | 400W |
Dimensions | 484 x 303 x 88mm | 483 x 358 x 88mm | |
Weight | 8.08Kg | 9.36Kg | 13.52Kg |
Finish | Panel: aluminum plate, black | ||
* 2U tabletop and rack mounted design.
* Rated power output from 60W, 120W, 240W, 350W and 500W.
* 4 balanced XLR microphone inputs with phantom power and gain control.
* 4 dual RCA line inputs.
* 70V, 100V and 4-16ohm speaker terminals.
* Mic 1-4 with selectable priority over other inputs.
* Built-in chime, 2/4 tone selector and remote trigger.
* XLR balanced line output for extra power amplifier.
* REC output for tape recorder.
* PRE Output and AMP input for extra signal processor.
* Master, Mic1-4, Aux volume control, treble and bass control.
* Indications includes power and output level meter.
* AC 110V or 230V and DC 24V operation.
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our product are complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
By now, we have been successfully conducting both import and export activities worldwide for 10 years with suppliers and buyers.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
