- Place of Origin:CN;GUA
- Model Number:T-35M/T-60M
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:1
- Rated Power Output: 35W/60W
- Speaker Output:70V, 100V & 4~8 ohms
- Frequency Response:50Hz~16KHz(+1dB, -3dB)
- S/N Ratio:MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB
- THD:Less than 0.5% at 1KHz, 1/3 rated power
- Crosstalk:≤50dB
- Cooling:Fan automatically start up when temp reaches 55℃
- Protection:High temp, overload & short-circuit
- Power Supply:~110V/60Hz or ~230V/50Hz
- Power Consumption:60W/100W

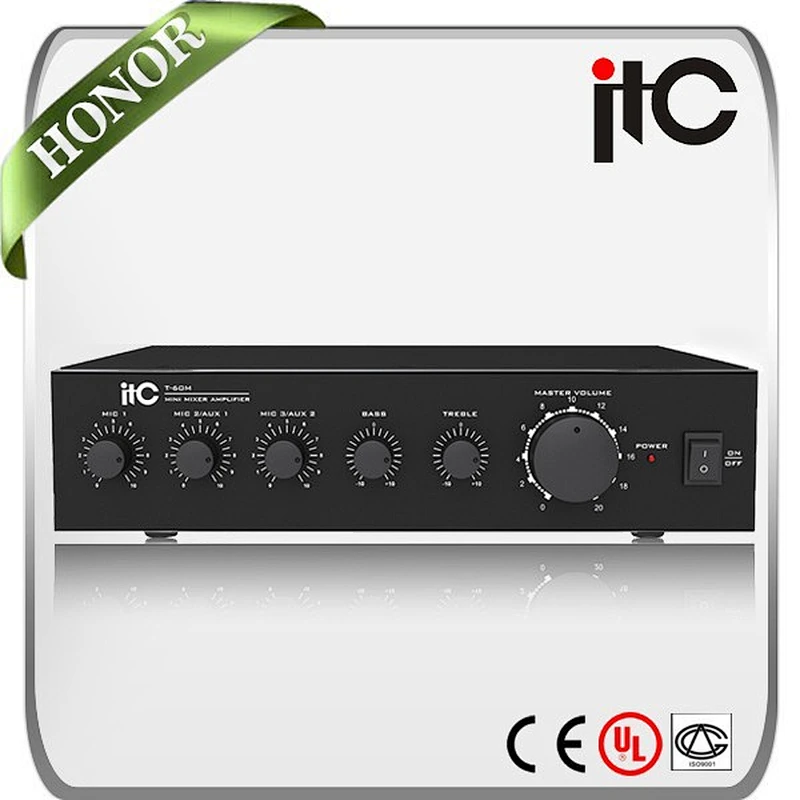

ITC T-35M Series 35W or 60W Small Highly Integrated PA System Amplifier Price
ITC T-35M Series 35W or 60W Small Highly Integrated PA System Amplifier Price
ITC T-35M Series 35W or 60W Small Highly Integrated PA System Amplifier Price
ITC T-35M Series 35W or 60W Small Highly Integrated PA System Amplifier Price
* 3 MIC inputs, 2 AUX inputs
* 3 MIC volume control, 2 AUX volume control
* With priority, MIC1 input is prior to other audio input
* There is a separate treble and bass adjustment knob
* One MIC2 / AUX1 selector switch, one MIC3 / AUX2 selector switch
* Two types of power output: 4 ohms constant resistance, 8 ohms output and constant voltage 70V, 100V output
* Single-channel rated power 35W/60W output
ITC T-35M Series 35W or 60W Small Highly Integrated PA System Amplifier Price
Model | T-35M | T-60M |
Rated Power Output | 35W | 60W |
Speaker Output | 70V, 100V & 4~8Ω | |
Input Sensitivity & Impedance | MIC 1, 2, 3: 5mV/600Ω, Unbalanced phone jack input | |
MIC2: 775mV/10KΩ, Unbalanced phone jack input | ||
AUX2: 350mV/10KΩ, Unbalanced RCA input | ||
Output Sensitivity & Impedance | MIX OUT: 1V/470Ω, Unbalanced RCA output | |
Tone | Bass: ±10dB at 100Hz | |
Treble: ±10dB at 10KHz | ||
Frequency Response | 50Hz~16KHz(+1dB, -3dB) | |
S/N Ratio | MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB | |
THD | Less than 0.5% at 1KHz, 1/3 rated power | |
Crosstalk | ≤50dB | |
Cooling | Fan automatically start up when temp reaches 55℃ | |
Protection | High temp, overload & short-circuit | |
Power Supply | ~110V/60Hz or ~230V/50Hz | |
Power Consumption | 60W | 100W |
Weight | 3Kg | 3.5Kg |
Dimensions | 484 x 335x88mm | |
Finish | Panel: steel plate, black Case: steel plate, black | |
