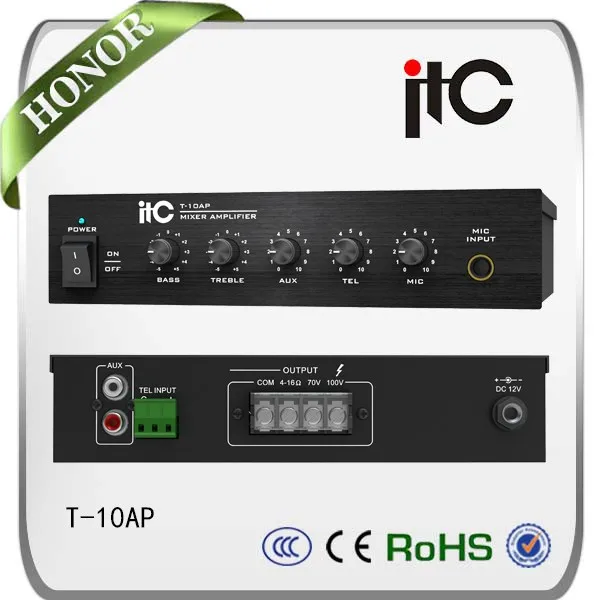

ITC T-10AP Well Performance PA Audio BGM Mixer Amplifier

T-10AP is desktop power amplifier, and the rated power is 10W. It meets the demand of small scale PA system. For audio processing, it’s only with volume control so that it needs to work with preamplifier. It has 2 modes of power output to be connected with constant voltage speaker and constant impedance speaker. They’re constant voltage output at 70V or 100V and constant impedance output at 4 to 16 ohm. What’s more, it’s with excellent fan. When operating, it also keeps the environment quiet.

1)Rated Power: 10W

2)With 1 Mic input (5mV 1Kohm) and 1 AUX input (300mV 10Kohm)

3)1 TEL input (Sensitivity is 1V 2Kohm)

4)With internal tone control (Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz)

5)With the function of priority, TEL has the highest, Mic has the second, and AUX 1 has the third

6)Constant voltage output at 100V or 70V and constant impedance output at 4 to 16 ohm
