- Place of Origin:CN;GUA
- Model Number:T-20AP/ T-40AP
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:2 (2.0)
- Rated Power:20W/40W
- Max. Rated Power:30W/60W
- Speaker Output:4 to 16 ohm, 70V/100V
- Sensitivity/Impedance of Input:350mV/50Kohm
- S/N Ratio:Less than 90dB
- Frequency Response:50Hz to 18 KHz
- Input of Mic 1/2:Mic 1/2 input at 5mV, Front output at 1V
- Front Output:1V/600 ohm
- T.H.D.:1V/600 ohm
- Power Supply:AC 110V of 60Hz or AC 230V of 50Hz or DC 24V

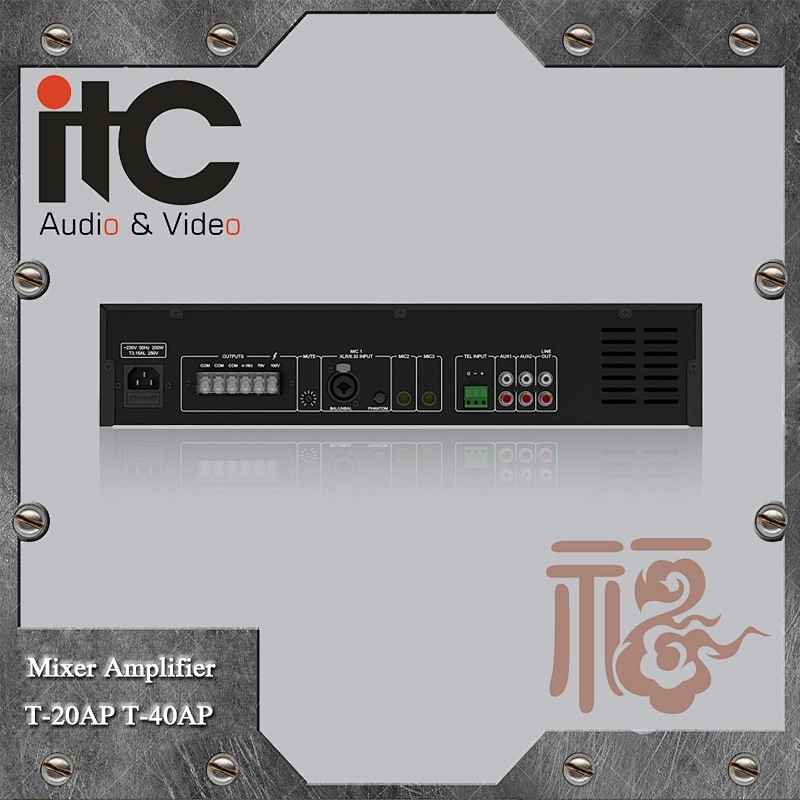

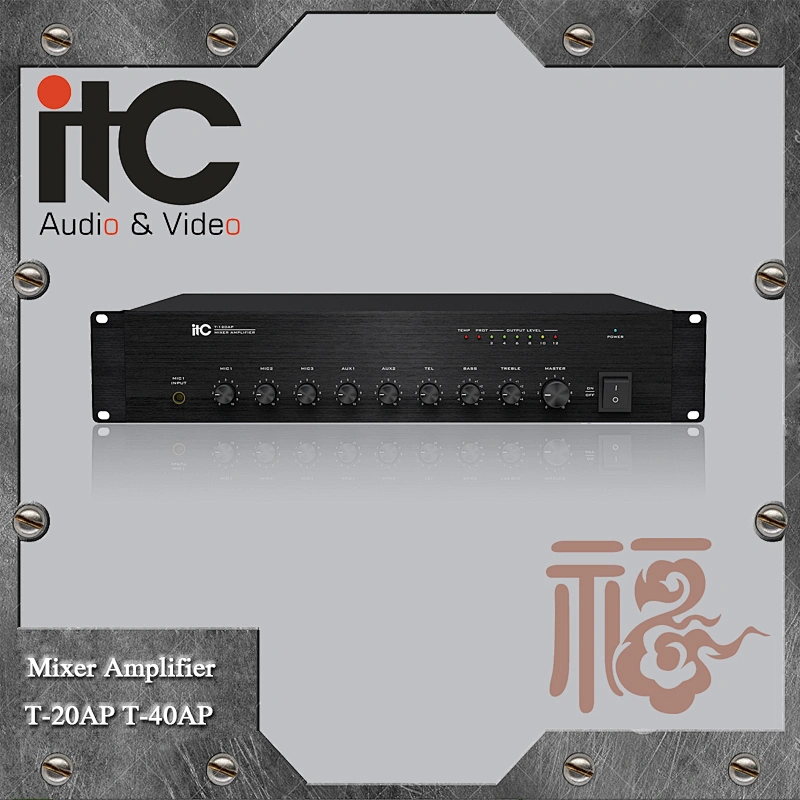

ITC AP Series Practical 2 Mic 1 AUX 1 TEL Mixer PA Mixing Amplifier
ITC AP Series Practical 2 Mic 1 AUX 1 TEL Mixer PA Mixing Amplifier
ITC AP Series Practical 2 Mic 1 AUX 1 TEL Mixer PA Mixing Amplifier
ITC AP Series Practical 2 Mic 1 AUX 1 TEL Mixer PA Mixing Amplifier
It’s mixer amplifier with preamp. The output power is from 20W to 120W which meet the demand of medium scale PA system. It’s with 2 modes of power output in order to be connected with constant voltage speaker and constant impedance speaker. They’re constant voltage output at 100V or 70V and constant impedance output at 4 to 16 ohm with 6 level indicators. Complete protection circuit is for over-heat, overload, short, etc. What’s more, it’s with excellent fan which is high efficiency and quiet when operating.
ITC AP Series Practical 2 Mic 1 AUX 1 TEL Mixer PA Mixing Amplifier
1) Rated Power: 20W, 40W
2) With one Mic 2 input (5mV 1 Kohm) and 1 AUX input (350mV 10 Kohm)
3) With 1 balanced/unbalanced Mic 1 input (2.5/5mV 1/2 Kohm)
4) 1 TEL input (Sensitivity is 350mV 2 Kohm)
5) With internal tone control (Bass: ±10dB at 100Hz; Treble: ±10dB at 10KHz)
6) Priority from high to low: TEL>Mic 1>Mic 2 & AUX
7) With complete protection circuit for short, overload, over-heat, etc.
8) 2 modes of power output: constant voltage output at 100V or 70V; constant impedance output at 4 to 16 ohm
ITC AP Series Practical 2 Mic 1 AUX 1 TEL Mixer PA Mixing Amplifier
Model | T-20AP | T-40AP |
Rated Power | 20W | 40W |
Max. Rated Power | 30W | 60W |
Speaker Output | 4 to 16 ohm, 70V/100V | |
Sensitivity/Impedance of Input | 350mV/50Kohm | |
S/N Ratio | Less than 90dB | |
Frequency Response | 50Hz to 18 KHz | |
Input of Mic 1/2 | Mic 1/2 input at 5mV, Front output at 1V | |
Sensitivity/Impedance of Input | 5mV/600 ohm | |
S/N Ratio | Less than 62dB | |
Tone Control (Bass: 100Hz, Treble: 10KHz) | ±12dB | |
Voltage of Phantom Power | DC +48V | |
AUX 1 Input | ||
Sensitivity/Impedance of Input | 350mV/15Kohm | |
S/N Ratio | Less than 76dB | |
Frequency Response <-3dB | 50Hz to 18KHz | |
Tone Control (Bass: 100Hz, Treble: 10KHz) | ±12dB | |
Front Output | 1V/600 ohm | |
T.H.D. | 1V/600 ohm | |
Line Output | 10dB/3Kohm | |
Power Supply | AC 110V of 60Hz or AC 230V of 50Hz or DC 24V | |
Power Consumption | 45W | 75W |
Dimension | 276*245*70mm | |
NG | 4Kg | 4.5Kg |
