- Place of Origin:CN;GUA
- Model Number:T-60H T-120H T-240H
- Brand Name:ITC
- Rated Power:60W/120W/240W
- Speaker Output:70V/100V
- Sensitivity & Impedance of Input:MIC1, 2, 3, 4 input:5mV/600Ω Unbalanced 6.3 connection terminal
- Sensitivity & Impedance of Output:MIX OUT:1000mV/470Ω Unbalanced RCA connection terminal
- Pitch:low pitch:±10dB at 100Hz, high pitch:±10dB at 10KHz
- Frequency Response:50Hz~16KHz(+1dB,-3dB)
- S/N Ratio:MIC1, 2, 3:66dB; AUX1, 2:80dB
- Harmonic Distortion:< 0.5%( 1KHz, 1/3 Rated output power)
- Crosstalk:≥50dB
- Power Supply:~220-240V 50/60Hz

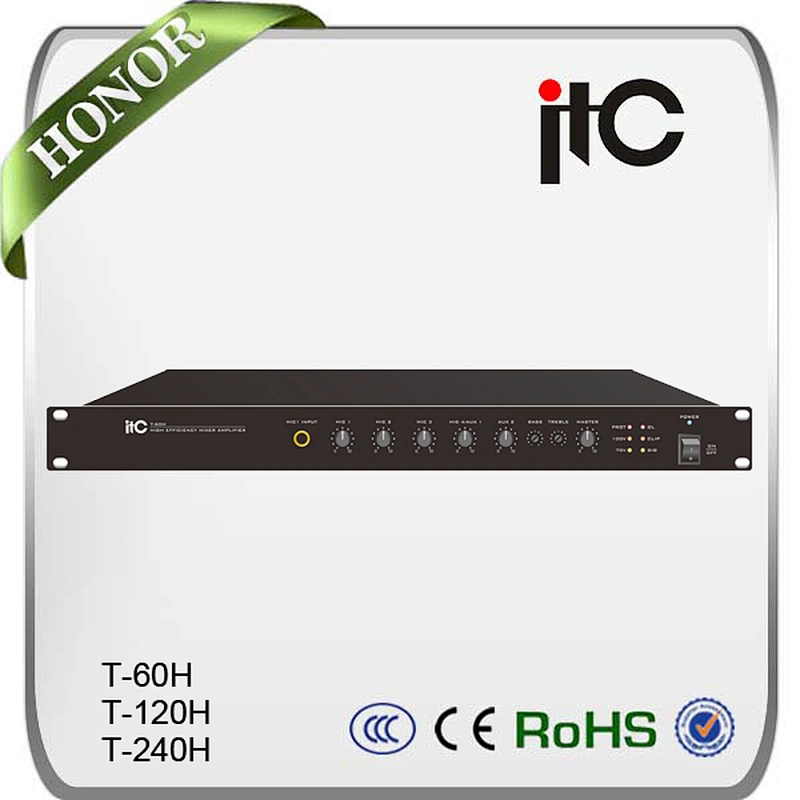

T-60H 60W High Efficiency Mixer Amplifier For Background Music Broadcast
Product Usage
1. High efficiency mixer amplifier.
2. For simple and small background music play place.
Features
1. Standard cabinet design (1U), exquisite SMT process design.
2. 1 Channel EMC input, 2 Channel aux input and 4 Channel MIC input.
3. With channel priority function EMC>MIC1>MIC2, MIC3, AUX1, AUX2.
4. With independent volume control on each input, and the master volume has a treble, bass adjustment and volume control
5. With level indicator, overload and protection indicator.
6. With short circuit, overload, overheating and other self-protection.
7. With 2 output modes: constant voltage output 100V, 70V (non bridging mode)
8. High efficiency energy saving switching power supply is perfect combined with high energy saving design of high efficiency power amplifier.
9. Wide voltage supply: 180v-240v,can work normally.
10. Standby power supply 24V,switch without delay , optional.
Specifications
Model | T-60H | T-120H | T-240H | |||
Leading-out Terminal | 70V, 100V | |||||
Output Power | 60W | 120W | 240W | |||
Input Sensitivity& Impedance | MIC1, 2, 3, 4 input:5mV/600Ω Unbalanced 6.3 connection terminal | |||||
AUX1, 2 input:350mV/10KΩ Unbalanced RCA connection terminal | ||||||
EMCinput:775mV/10KΩ Unbalanced 6.3 connection terminal | ||||||
Output Sensitivity & Source Impedance | MIX OUT:1000mV/470Ω Unbalanced RCA connection terminal | |||||
Pitch | low pitch:±10dB at 100Hz | |||||
high pitch:±10dB at 10KHz | ||||||
Frequency Response | 50Hz~16KHz(+1dB,-3dB) | |||||
SNR( Noise-signal Ratio) | MIC1, 2, 3:66dB; AUX1, 2:80dB | |||||
Harmonic Distortion | < 0.5%( 1KHz, 1/3 Rated output power) | |||||
Silent Voice Function | MIC 1 Prior to mic2-4, aux1-2 audio input | |||||
EMC Priority for all audio input | ||||||
Channel Crosstalk Attenuation | ≥50dB | |||||
Heat Radiation | Forced fan cooling after side entry, Boot fan, Steplees speed changing | |||||
Protection | Over temperature protection, over current protection, short circuit protection | |||||
Power Supply | ~220-240V 50/60Hz | |||||
Power Consumption | 100W | 180W | 350W | |||
Specification | 484×260×44mm | |||||
Weight | 4.0Kg | 4.4Kg | 5.0Kg | |||
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
