- Place of Origin:CN;GUA
- Model Number:T-30C
- Brand Name:ITC
- Speaker Output:70V/100V/4 ohm
- Frequency Response:50 to 18KHz
- Power Supply:AC 110V or 230V 50/60Hz
- Rated Power:60W
- Power Consumption:96W
- Dimension:484x350x66mm
- Weight:9.6Kg
- Warranty:3 Years

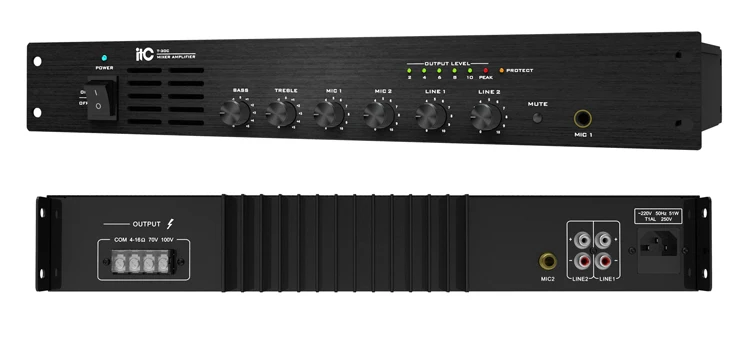

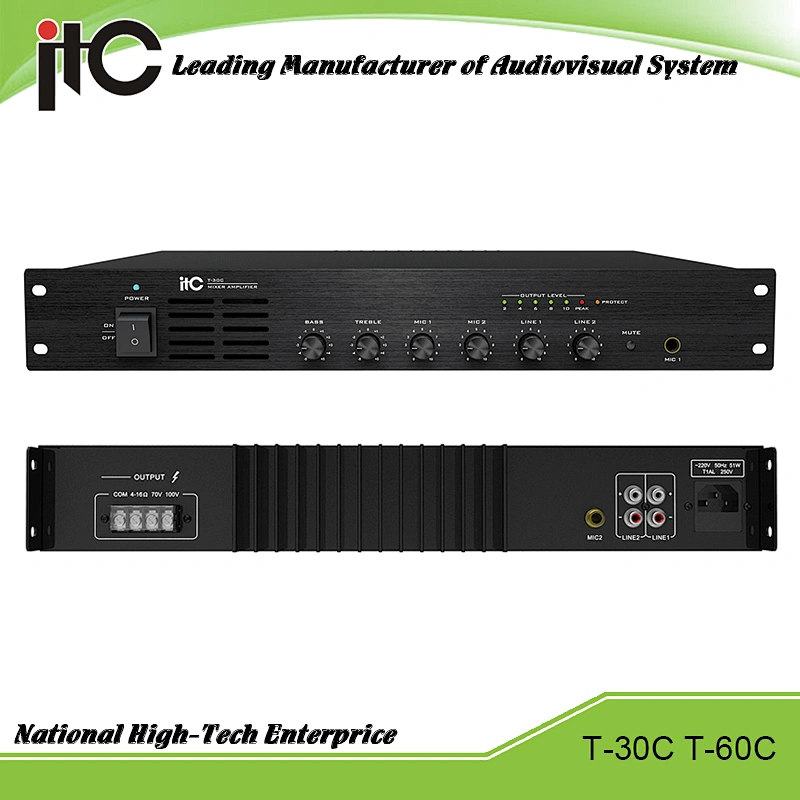

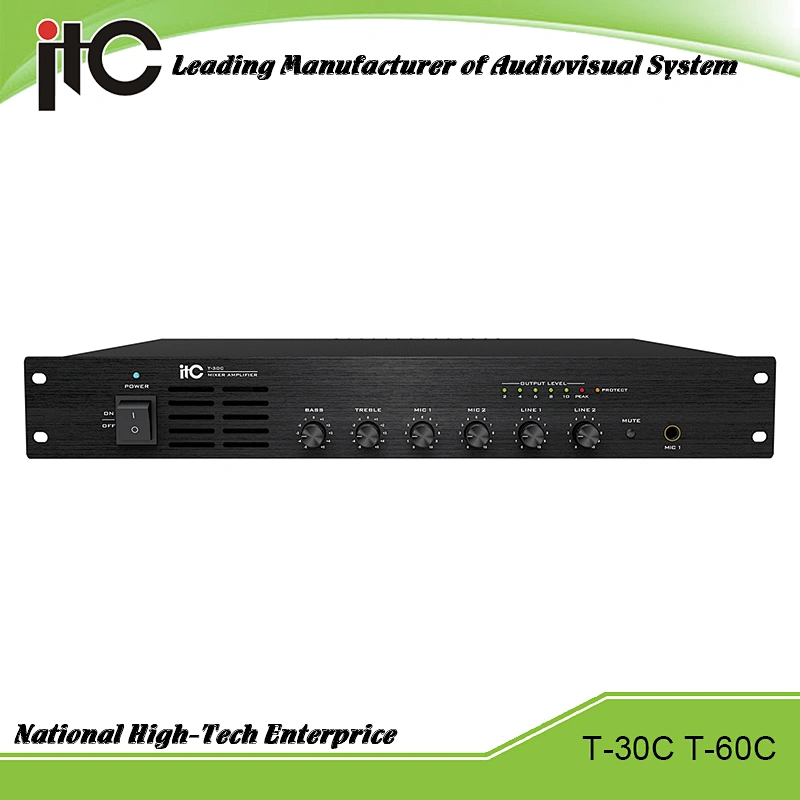

ITC T-30C Series Economical Support 2 Kind Speaker Output PA Mixing Amplifier
Features
* Mini Mixer amplifier for commercial sound system where paging and background music are
needed.
* Digital class-D mixer power amplifier.
* Energy start series mixer amplifier of 85% efficiency.
* Rated power output from 30W, 60W to 120W.
* 70V, 100V and low impedance 4-16Ω speaker outputs.
* Two microphone inputs by phone jack connector & two Aux inputs.
* One EMC input for voice alarm system with secondary priority.
* One line output for power amplifier connection.
* Mic 1-2, Aux 1-2 and master volume controls and bass/treble tone control.
* Short circuit, overload and high temp protection.
* AC 110V or 230V and DC 24V operation.
Optional
* DC 24V.
* Panel with/without handhold.
* Faults monitoring module, it can output short circuit signal to achieve main/spare
amplifier switch.
Specifications
Model | T-30CA | T-60CA | T120CA | ||
Rated Power Output | 30W | 60W | 120W | ||
Speaker Outputs | 70V, 100V & 4~16Ω | ||||
Input Sensitivity & Impedance | MIC 1, 2: 5mV/600Ω, Unbalanced phone jack input | ||||
AUX 1, 2: 350mV/10KΩ, Unbalanced RCA input | |||||
EMC: 775mV/10KΩ, Unbalanced DG7.62 input | |||||
Output Sensitivity & Impedance | Pre OUT: 1V/470Ω, Unbalanced RCA output | ||||
Tone | Bass: ±10dB at 100Hz | ||||
Treble: ±10dB at 10KHz | |||||
Frequency Response | 50Hz~16KHz (+1dB, ±3dB) | ||||
S/N Ratio | MIC 1, 2: 66dB, AUX 1, 2: 80dB | ||||
THD | Less than 0.5% at 1KHz, 1/3 rated power | ||||
MIC1 with VOX of highest priority with 0-30dB | |||||
VOX | attenuation | ||||
Crosstalk | ≤50dB | ||||
Cooling | Natural cooling system | ||||
Protection | High temp, overload & short-circuit | ||||
Power Supply | ~110V-230V 50/60Hz | ||||
Power Consumption | 60W | 100W | 180W | ||
Weight | 3.26Kg | 3.85Kg | 4.65Kg | ||
Dimensions | 215 x 275 x 66mm | ||||
Finish | Panel: aluminum, black Case: SPCC Panel | ||||
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
