- Place of Origin:CN;GUA
- Model Number:T-60FP/T-120FP/T-240FP
- Brand Name:ITC
- Rated Power Output:60W/120W/240W
- Speaker Output:70V, 100V & 4~16Ω
- Tone:Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz
- Frequency Response:50Hz~16KHz( +1dB, -3dB)
- S/N Ratio:MIC 1, 2, 3, 4: 66dB; AUX: 76dB
- THD:Less than 0.1% at 1KHz, 1/3 rated power
- Mute:MIC 1~4 overrides other input signals
- Gain Control:MIC 2, 3 XLR, ±2.5mV~±75mV at 30dB
- Crosstalk:≤50dB
- Protection:High temp, overload & short-circuit

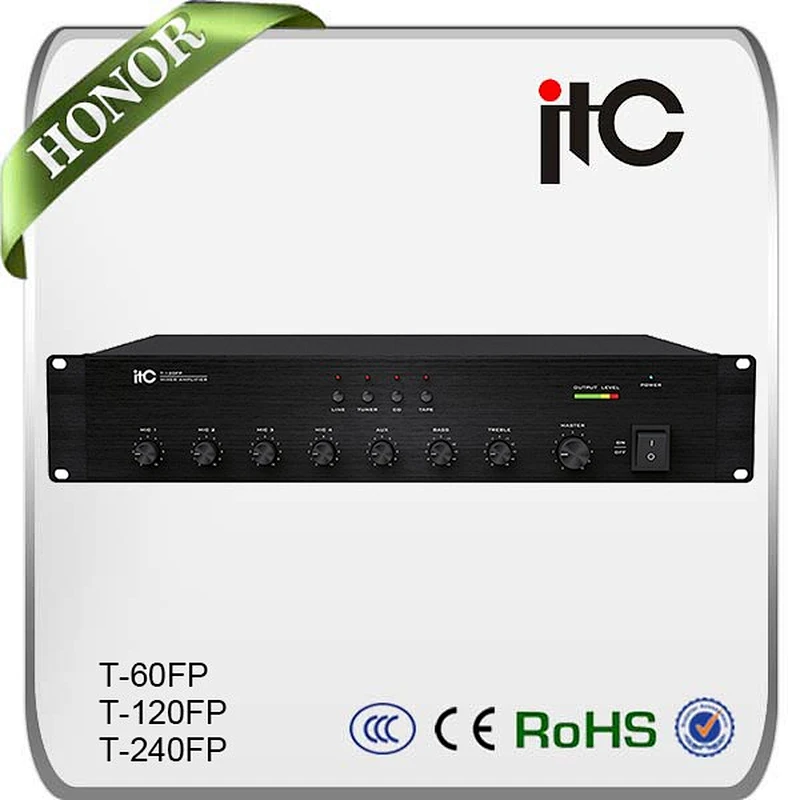

Factory price dj amplifier price india

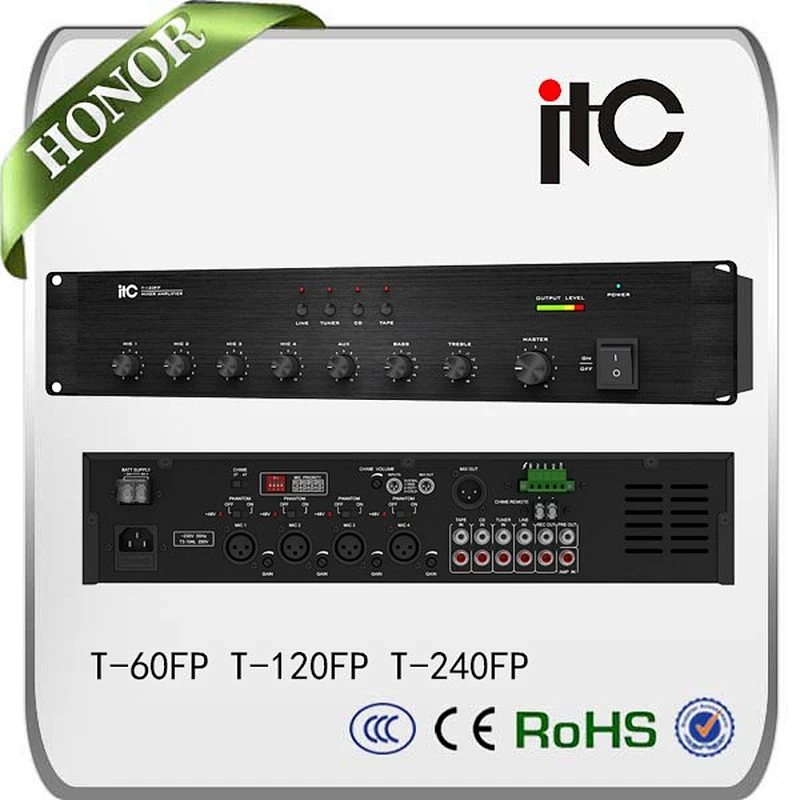

The FP series amplifier is a 2U (less than 240W) mixer amplifier featuring 70V, 100V and 4-16ohm speaker outputs & 4 universal balanced XLR mic inputs with phantom power.

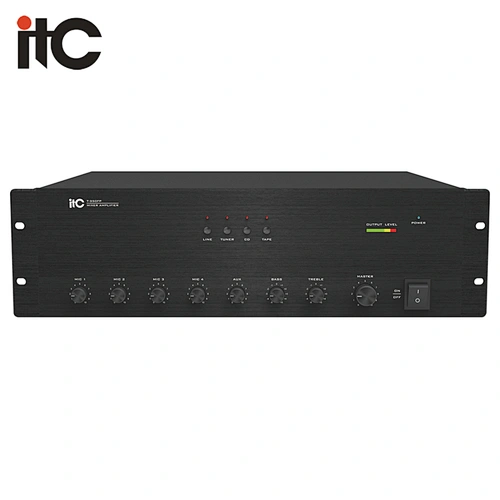

The amplifier rated power ranges is from 60W, 120W, 240W to 350W, 500W (3U).

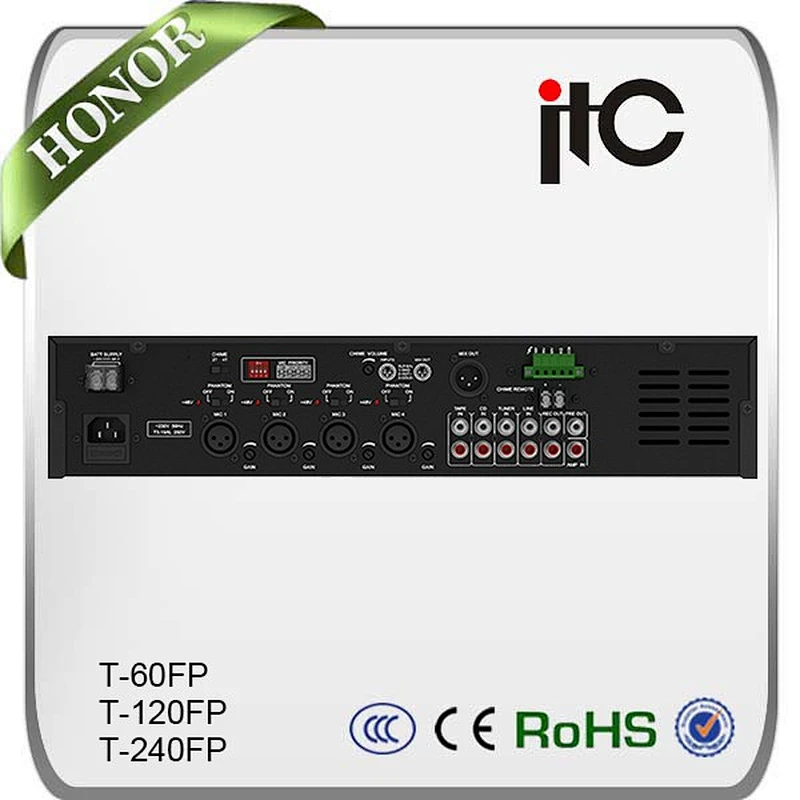

There are 4 audio source selectors on the front panel. 4 Aux inputs by dual RCA type are located on the rear panel. Mic 1-4 with Vox priority selectors. The amplifier is also built-in pre-announcement chime with volume control and remote chime trigger.
The REC output for tape recorder and PRE output, AMP input for adding extra signal processor
like mixer, graphic equalizer.
Volume control over Mic1-4, aux, master & overall treble/bass controls are provided.
Complete protection includes short circuit and thermal protection, current limiter and overloading.
Model | T-60FP | T-120FP | T-240FP |
Rated Power Output | 60W | 120W | 240W |
Speaker Outputs | 50V, 70V, 100V & 4~16Ω | ||
Input Sensitivity & Impedance | MIC 1, 2, 3, 4: ±2.5mV/2KΩ, Balanced XLR input | ||
Output Sensitivity & Impedance | REC OUT: 200mV/470Ω, Unbalanced RCA output | ||
PRE OUT: 1000mV/470Ω, Unbalanced RCA output | |||
Overload | MIC 1, 2, 3, 4: >15dB | ||
Electromotive Force | AUX: >18dB | ||
Tone | Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz | ||
Frequency Response | 50Hz~16KHz (+1dB, -3dB) | ||
S/N Ratio | MIC 1, 2, 3, 4: 66dB; AUX: 76dB | ||
THD | Less than 0.1% at 1KHz, 1/3 rated power | ||
Muting Function | MIC 1~4 overrides other input signals | ||
Gain Control | ±2.5mV~±75mV at 30dB | ||
Crosstalk | ≤50dB | ||
Phantom Power | +48V with LED indicator | ||
Chime | 2 tone and 4 tone options | ||
Cooling | Fan automatically start up when temp | ||
Protection | High temp, overload & short-circuit | ||
Power Supply | ~110V-230V 50/60Hz | ||
Power Consumption | 100W | 200W | 400W |
Dimensions | 484 x 303 x 88mm | 483 x 358 x 88mm | |
Weight | 8.08Kg | 9.36Kg | 13.52Kg |
Finish | Panel: aluminum plate, black | ||
* 2U tabletop and rack mounted design.
* Rated power output from 60W, 120W, 240W, 350W and 500W.
* 4 balanced XLR microphone inputs with phantom power and gain control.
* 4 dual RCA line inputs.
* 70V, 100V and 4-16ohm speaker terminals.
* Mic 1-4 with selectable priority over other inputs.
* Built-in chime, 2/4 tone selector and remote trigger.
* XLR balanced line output for extra power amplifier.
* REC output for tape recorder.
* PRE Output and AMP input for extra signal processor.
* Master, Mic1-4, Aux volume control, treble and bass control.
* Indications includes power and output level meter.
* AC 110V or 230V and DC 24V operation.
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our product are complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
By now, we have been successfully conducting both import and export activities worldwide for 10 years with suppliers and buyers.
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
