ITC T-60 Series Economical Having EMC Input PA Mixing Amplifier for Sale

ITC T-60 Series Economical Having EMC Input PA Mixing Amplifier for Sale

Model NO.: T-60/T-120/T-240/T-350/T-550/T-650
Delivery: FOB
Minimum order quantity: 100 units
Supply Ability: 1000 units / Week
Country of Origin: Guangzhou, Shenzhen or HK

Quantity:

Product Description

Rated Power:60W/120W/240W/350W/500W/650W
Output for Speaker:70V, 100V or 4 to 16 ohm
Sensitivity & Impedance for Output:Mix Out: 1000mV/470 ohm, Unbalanced TRS
Tone:Bass: ±10dB at 100Hz/Treble: ±10dB at 10KHz
Frequency Response:50 to 16KHz (+1dB, -3dB)
S/N Ratio:Mic 1/2/3: 66dB; AUX 1/2: 80dB
T.H.D.:1KHz: 0.5%, 1/3 Rated Power
Mute:Mic 1 has highest priority; Adjustment Range: 0 to 30dB
Crosstalk:≤50dB
Cooling:The Fan Starts, when Temp≥55-degree
Certification:CE
Certification:ROHS
Type:PROFESSIONAL AMPLIFIER
Channels:1
Place of Origin:CN;GUA
Brand Name:ITC
Model Number:T-60/T-120/T-240/T-350/T-550/T-650

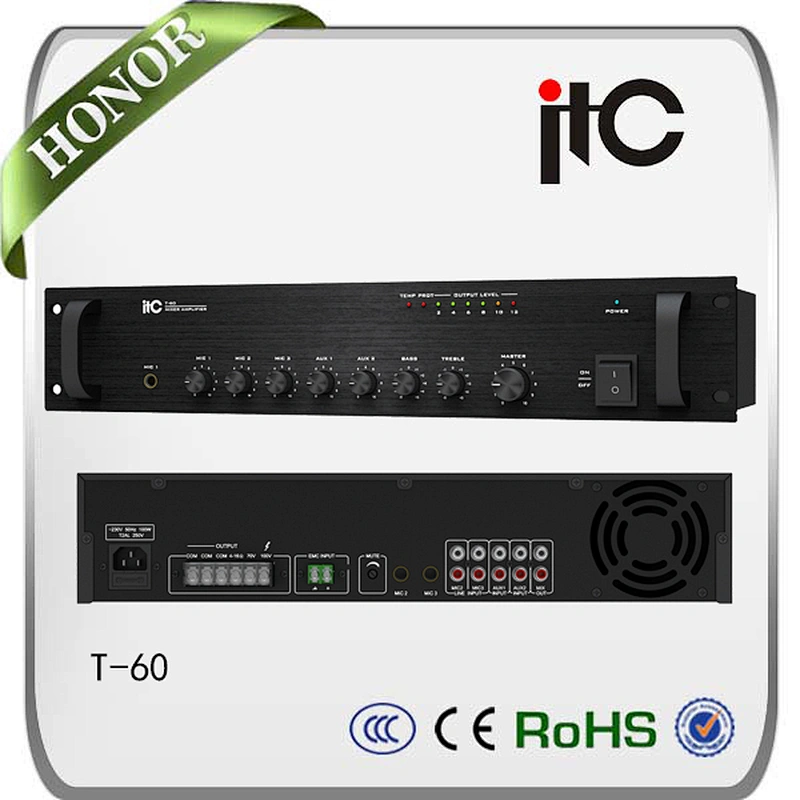

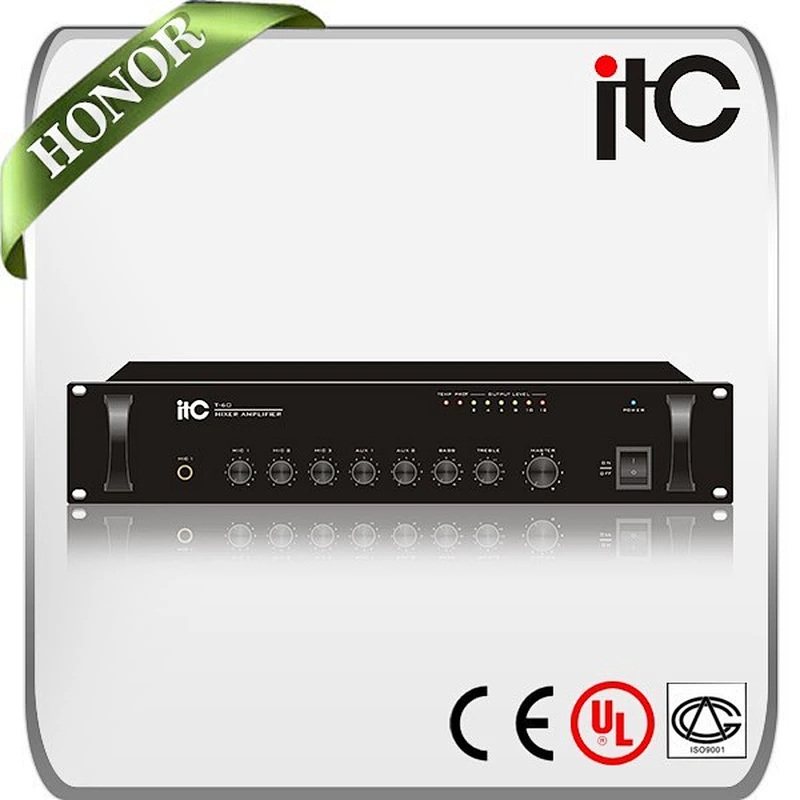

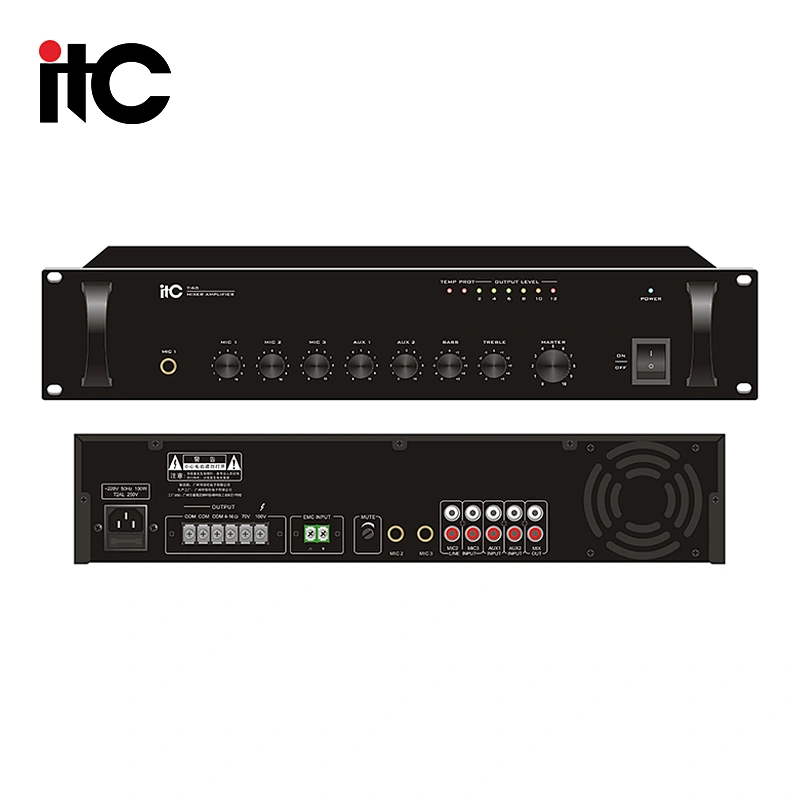

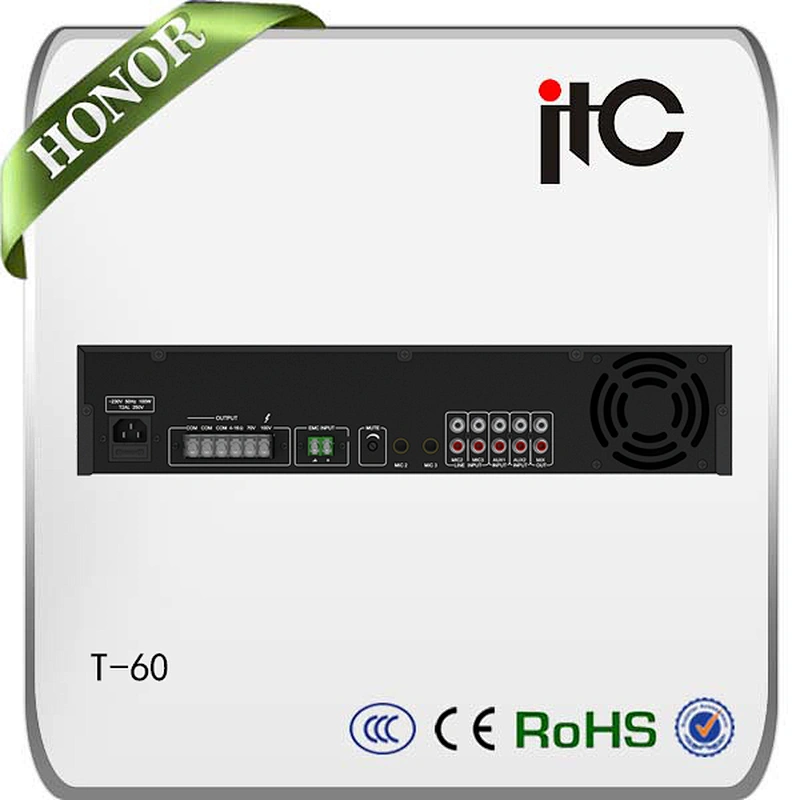

Appearance

ITC T-60 Series Economical Having EMC Input PA Mixing Amplifier for Sale

T-60 Series.png

Application

ITC T-60 Series Economical Having EMC Input PA Mixing Amplifier for Sale

1)Professional PA Power Amplifier with Preamplifier

2)To dong sound reinforce for small to large scale PA system

Feature

ITC T-60 Series Economical Having EMC Input PA Mixing Amplifier for Sale

1)It’s in 2U rack mount case of 19” (Model: 60W T-60, 120W T-120, 240W T-240) and 3U rack mount case of 19” (Model: 350W T-350, 500W T-500, 650W T-650)

2)3 Mic Input in Type of TRS, 2 AUX Input, 1 EMC Input

3)2 Mic/Line Input (Sensitivity is 775mV)

4)3 Level of Priority: Mic 1 has the highest prioriy, EMC has the second and others have the third

5)Mic 1/2/3 and AUX 1/2 have individual volume control; Treble/Bass control and total volume control are available

6)With complete protection circuit for short, overload, over-heat, etc

7)2 ways of power output: Constant voltage output at 100V or 70V and Constant Impedance Output at 4 to 16 ohm

8)Power supply at DC 24V is also allowed for T-60, T-120, T-240 and T-350

Specification

ITC T-60 Series Economical Having EMC Input PA Mixing Amplifier for Sale

Model	T-60	T-120	T-240	T-350	T-550	T-650
Rate Power	60W	120W	240W	350W	500W	650W
Output for Speaker	70V, 100V or 4 to 16 ohm
Sensitivity & Impedance for Input	Mic 1/2/3: 5mV/600 ohm, Unbalanced TRS
	Line 2/3: 775mV/10Kohm, Unbalanced RCA
	AUX 1/2: 350mV/10Kohm, Unbalanced RCA
	EMC: 775mV/10Kohm, Unbalanced DG7.62
Sensitivity & Impedance for Output	Mix Out: 1000mV/470 ohm, Unbalanced TRS
Electric Potential of Overload	Mic 1/2/3: >12dB, Unbalanced TRS
	Line 2/3: >12dB, Unbalanced RCA
	AUX 1/2: >20dB, Unbalanced RCA
	EMC: >12dB, Unbalanced DG7.62
Tone	Bass:±10dB at 100Hz
	Treble:±10dB at 10KHz
Frequency Response	50 to 16KHz (+1dB, -3dB)
S/N Ratio	Mic 1/2/3: 66dB; AUX 1/2: 80dB
T.H.D.	1KHz: 0.5%, 1/3 Rated Power
Mute	Mic 1 has highest priority; Adjustment Range: 0 to 30dB
Crosstalk	≤50dB
Cooling	The Fan Starts, when Temp≥55-degree
Circuit Protection	Over-heat, overload & short
Power Supply	AC 110V/60Hz or AC 230V/50Hz or DC 24V				AC 110V/60Hz or AC 230V/50Hz
Power Consumption	100W	200W	400W	500W	750W	950W
Dimension	*48430388mm*			*484359132mm*
Weight	8.1Kg	8.6Kg	11.68Kg	13.96Kg	15.72Kg	17.8Kg
Material	Aluminum Alloy SPCC Case, Black
