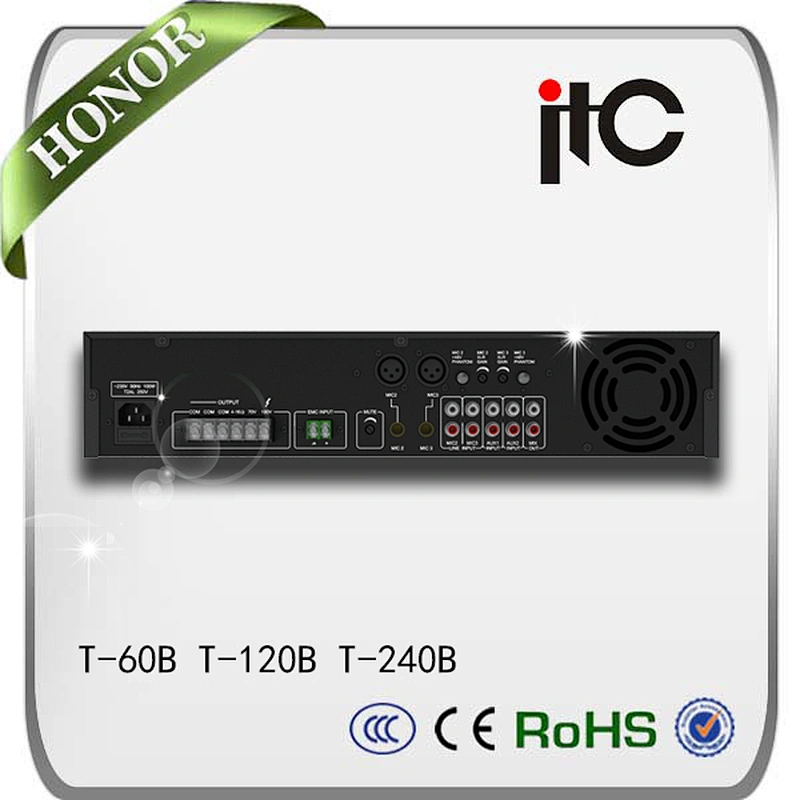

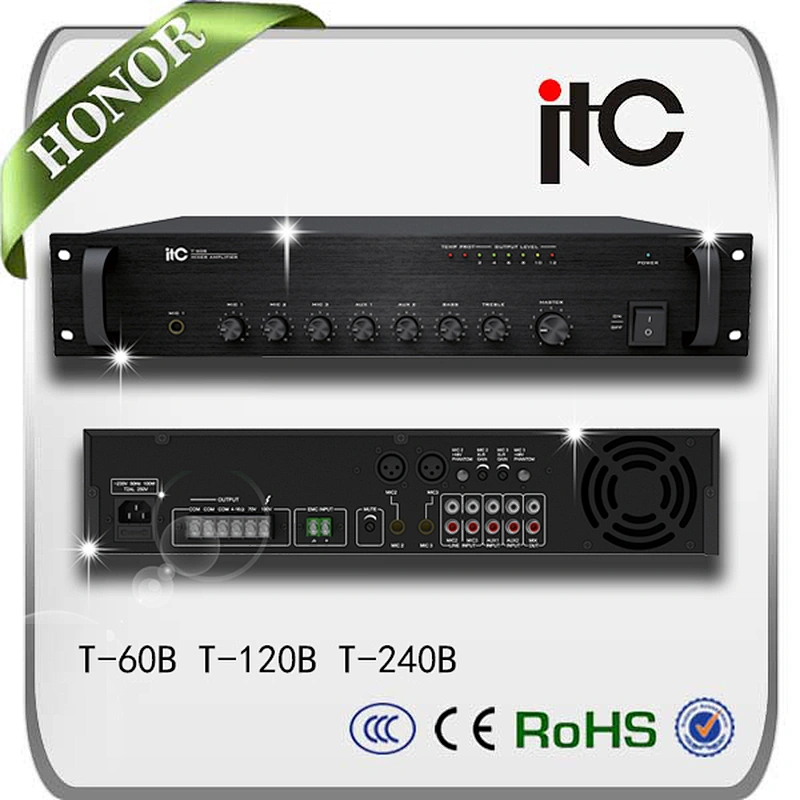

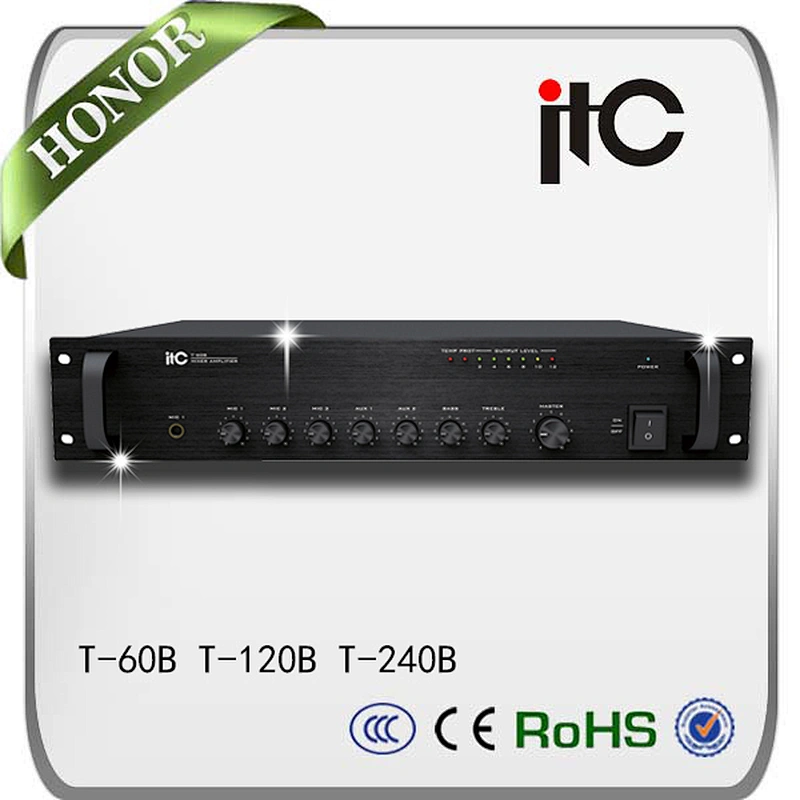

ITC T-60B Series Having Priority Function Balanced Mic Input BGM PA Mixer Amplifier

ITC T-60B Series Having Priority Function Balanced Mic Input BGM PA Mixer Amplifier

Model NO.: T-60B T-120B T-240B T-350B T-550B T-650B
Delivery: FOB
Minimum order quantity: 100 units
Supply Ability: 1000 units / Month
Country of Origin: Guangzhou, Shenzhen or HK

Quantity:

Product Description

Place of Origin:CN;GUA
Model Number:T-60B T-120B T-240B T-350B T-550B T-650B
Brand Name:ITC
Type:PROFESSIONAL AMPLIFIER
Channels:1
Rated Power:60W/120W/240W/350W/500W/650W
Speaker Output:4 to 16ohm, 70V/100V
Sensitivity & Impedance of Input:350mV/10Kohm, unbalanced RCA input
Sensitivity & Impedance of Output:Mix output: 1V/470ohm, unbalanced RCA output
Tone:Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz
Frequency Response:50Hz to 16KHz (+1dB, -3dB)
S/N Ratio:Mic 1/2/3: 66dB, AUX 1/2: 80dB
T.H.D.:≤0.5% at 1KHz, 1/3 rated power
Crosstalk:≤50dB
Power Supply:AC 110V/230V at 50/60Hz & DC 24V

Feature

ITC T-60B Series Having Priority Function Balanced Mic Input BGM PA Mixer Amplifier

1) With 1 EMC input (775mV);
2) 2 kinds of speaker output: constant voltage output at 70V/100V or constant impedance output at 4 to 16ohm;
3) Complete protection function for short, overload, over-heat, etc;
4) 3 Mic input (5mV);
5) 2 balanced Mic input (±2.5mV);
6) With treble/bass control (±10dB);
7) With DC +48V phantom power;
8) Balanced Mic input is with gain control (±2.5mV to ±75mV, 30dB);
9) 2 AUX input (350mV);
10) Priority of input from high to low: Mic 1>EMC>Mic 2/3, AUX 1/2, Mic 2/Line, Mic 3/Line;
11) With 2 Mic/Line input (the sensitivity of Line input is 775mV).

Technical Parameters

ITC T-60B Series Having Priority Function Balanced Mic Input BGM PA Mixer Amplifier
