- Place of Origin:CN;GUA
- Model Number:T-30CA T-60CA
- Brand Name:ITC
- Rated Power:30W/60W/120W
- Speaker Output:70V, 100V or 4 to 16 ohm
- Sensitivity & Impedance of Input:AUX 1, 2: 350mV/10Kohm, unbalanced RCA
- Sensitivity & Impedance of Output:1V/470ohm, unbalanced RCA
- Tone:Bass: ±10dB at 100Hz; Treble: ±10dB at 10KHz
- Frequency Response:50Hz to 16KHz (+1dB, -3dB)
- S/N Ratio:Mic 1, 2, 3: 66dB; AUX 1, 2: 80dB
- T.H.D.:≤0.5%, when 1KHz, 1/3 rated power
- Mute:Mic 1 has highest priority; adjustable range 0 to 30dB
- Crosstalk Attenuation:≤50dB

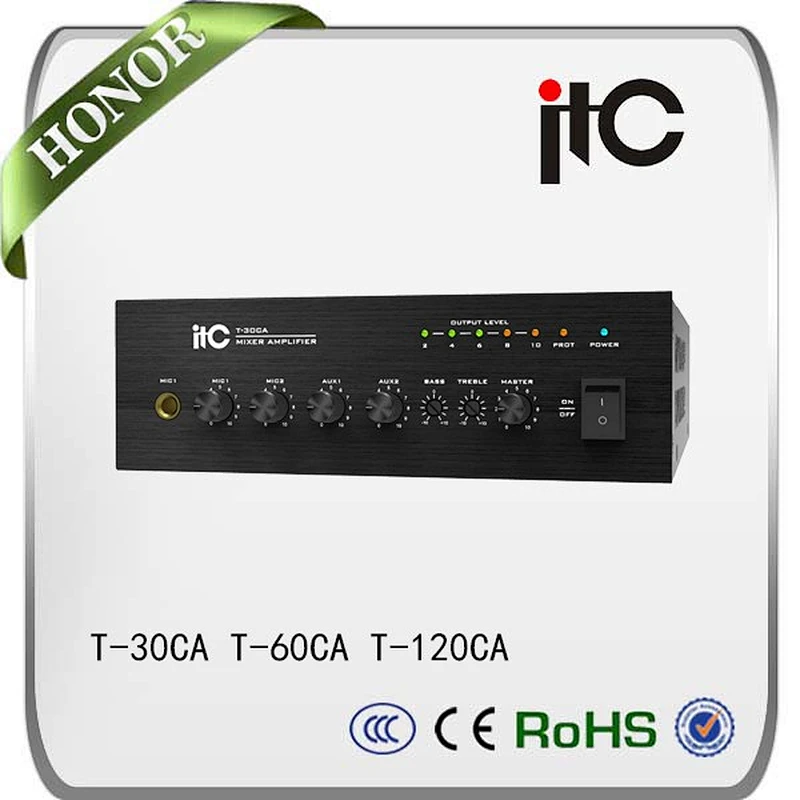

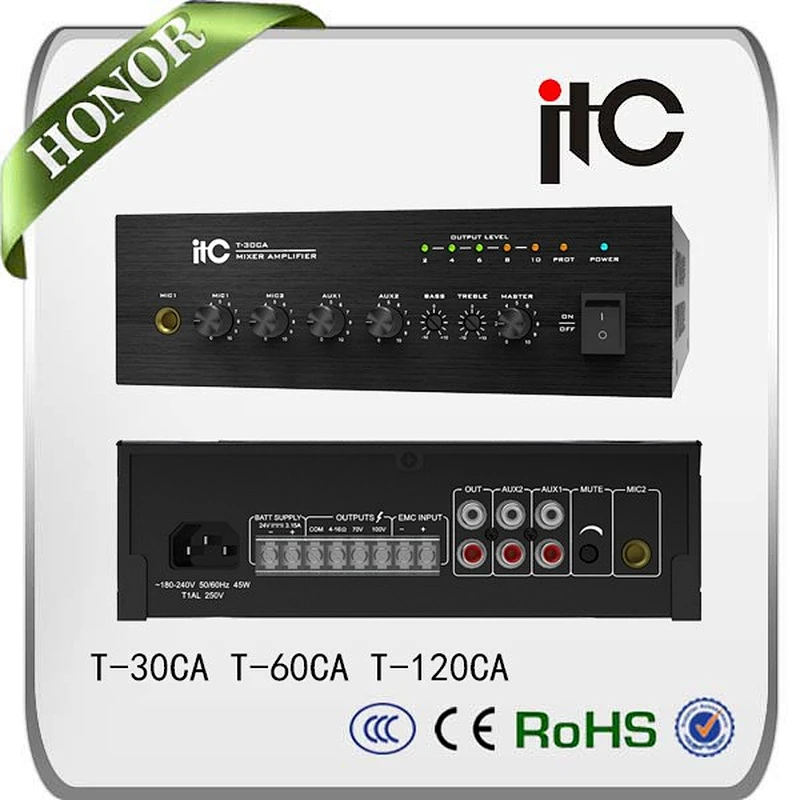

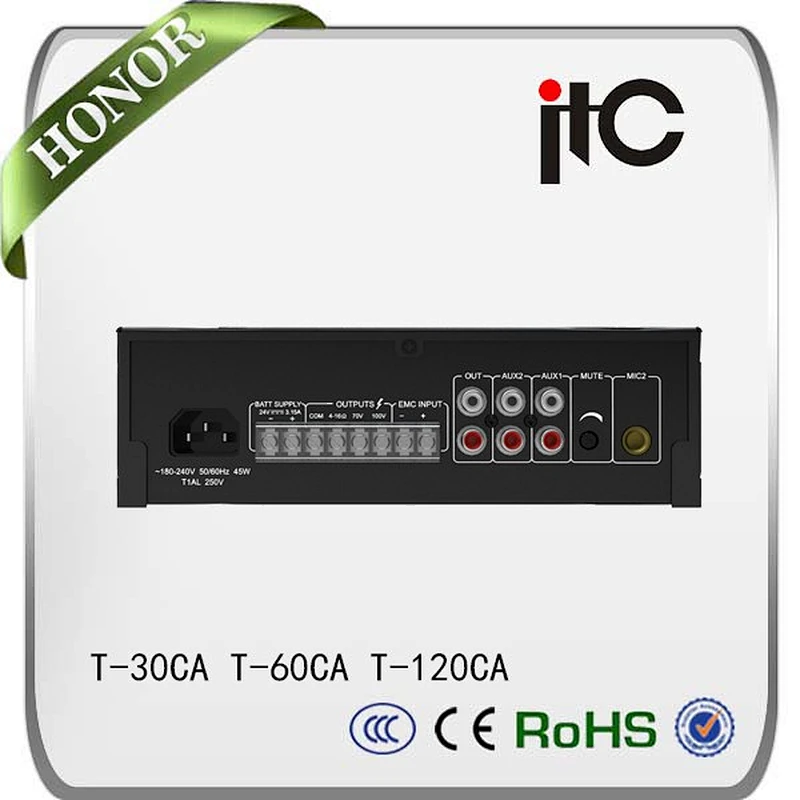

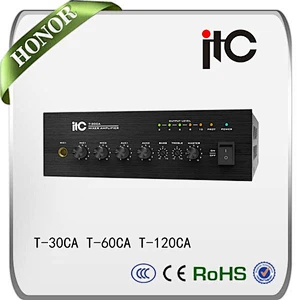

Reasonable Price Hifi Digital Class D Stereo Mixer Amplifier
Rated power public address mixer amplifiers of rangeis 30W, 60W to120W. The amplifier with
digital class-D technology for less heat generation and lower energy consumption by up to 85%
efficiency.
They are 2 microphone inputs, 2 aux inputs and 1 EMC input. Mic1 was designed with
VOX highest priority with mute level adjustment. EMC input of voice alarm is secondary priority.
One line output for power amplifier connection. Individual gain controls are provided for Mic 1-2
and Aux 1-2, bass and treble controls and master volume control are provided for overall tone
control.
70V, 100V and low impedance 4-16 ohms speaker outputs are provided. Extensive
protection from short-circuit, overload and high temp. AC 180- 240V and DC24V Operation.

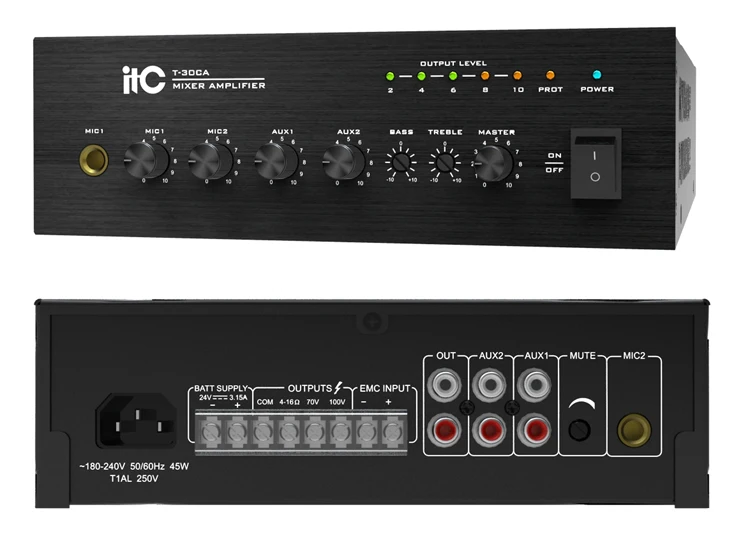

Model | T-30CA |
Rated Power Output | 30W |
Speaker Outputs | 70V, 100V & 4~16Ω |
Input Sensitivity & Impedance | MIC 1, 2: 5mV/600Ω, Unbalanced phone jack input |
AUX 1, 2: 350mV/10KΩ, Unbalanced RCA input | |
EMC: 775mV/10KΩ, Unbalanced DG7.62 input | |
Output Sensitivity & Impedance | Pre OUT: 1V/470Ω, Unbalanced RCA output |
Tone | Bass: ±10dB at 100Hz |
Treble: ±10dB at 10KHz | |
Frequency Response | 50Hz~16KHz (+1dB, ±3dB) |
S/N Ratio | MIC 1, 2: 66dB, AUX 1, 2: 80dB |
THD | Less than 0.5% at 1KHz, 1/3 rated power |
MIC1 with VOX of highest priority with 0-30dB | |
VOX | attenuation |
Crosstalk | ≤50dB |
Cooling | Natural cooling system |
Protection | High temp, overload & short-circuit |
Power Supply | ~110V-230V 50/60Hz |
Power Consumption | 60W |
Weight | 3.26Kg |
Dimensions | 215 x 275 x 66mm |
Finish | Panel: aluminum, black Case: SPCC Panel |
* Mini Mixer amplifier for commercial sound system where paging and background music are
needed.
* Digital class-D mixer power amplifier.
* Energy start series mixer amplifier of 85% efficiency.
* Rated power output from 30W, 60W to 120W.
* 70V, 100V and low impedance 4-16ohm speaker outputs.
* Two microphone inputs by phone jack connector & two Aux inputs.
* One EMC input for voice alarm system with secondary priority.
* One line output for power amplifier connection.
* Mic 1-2, Aux 1-2 and master volume controls and bass/treble tone control.
* Short circuit, overload and high temp protection.
* AC 110V or 230V and DC 24V operation.
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our product are complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
