ITC T-4S120B Series 4 Channel Public Address Power Amplifier with Mic Input

• Place of Origin:CN;GUA
• Model Number:T-4S60B/T-4S120B/T-4S240B
• Brand Name:ITC
• Type:PROFESSIONAL AMPLIFIER
• Channels:4
• Speaker Outputs:70V, 100V & 4~16Ω
• Input Sensitivity & Impedance:±385mV/10KΩ, Balanced XLR connector
• Overload Electromotive Force:>15dB
• Frequency Response:50Hz~16KHz(+1dB, -3dB)
• S/N:>90dB
• THD:Less than 0.1% at 1KHz, 1/3 rated power
• Crosstalk:<50dB
• Cooling:Fan automatically start up when temp reaches 55°C
• Protection:Over heat, over load, clip & short circuit
• Power Supply:~110V/60Hz or ~230V/50Hz or DC 24V

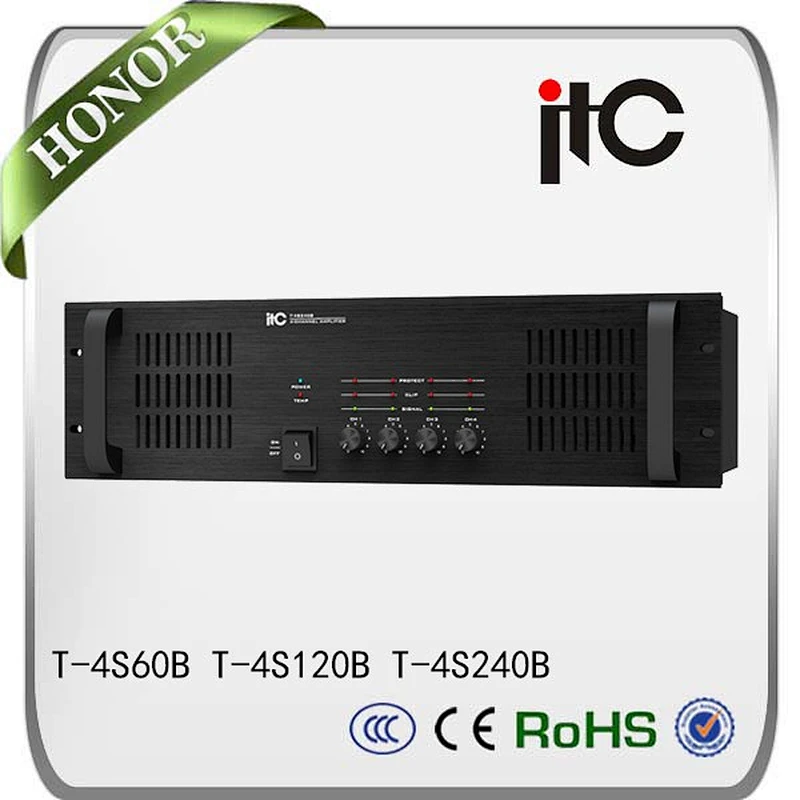

ITC T-4S120B Series 4 Channel Public Address Power Amplifier with Mic Input

* 4 individual power amplifier into one chassis

* Rack mount amps in 2U(T-4S60B/T-4S120B) and 3U(T-4S240B)

* Rated power from 60W, 120W to 240W per channel

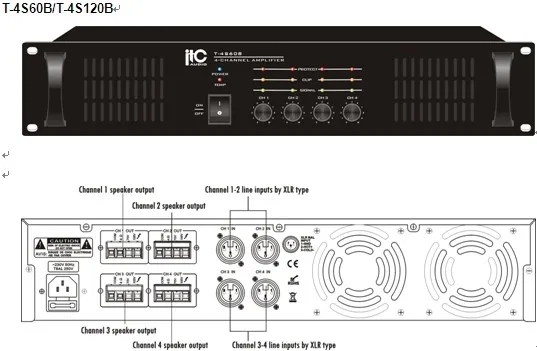

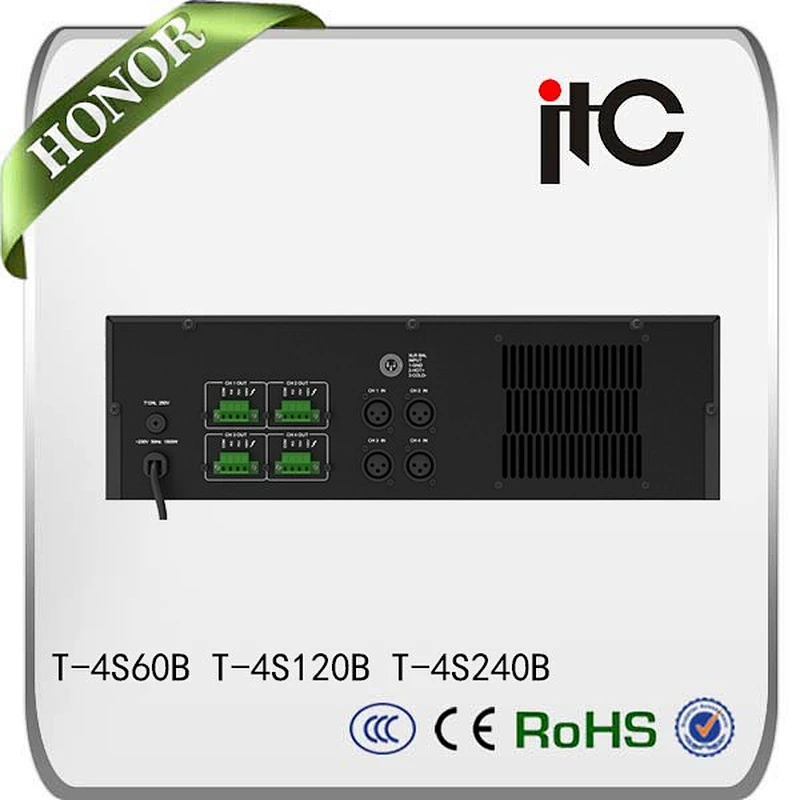

* 70V, 100V and 4-16ohm speaker output in phoenix

* Isolated transformer for human safety operation

* Balanced XLR line input for each channel

* Reliable protection of over heat, over load, clip & short circuit

* Indication for power, signal, peak, and protection

* Excellent device of radiator cooling fanner that ensures working effectively
